RS PRO IEC C7 Socket to Type C Europlug Plug Power Cord, 1.5m, Кабель

RS Pro IEC C7 Socket to Euro Plug

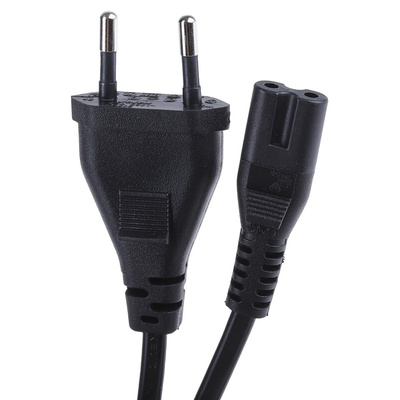

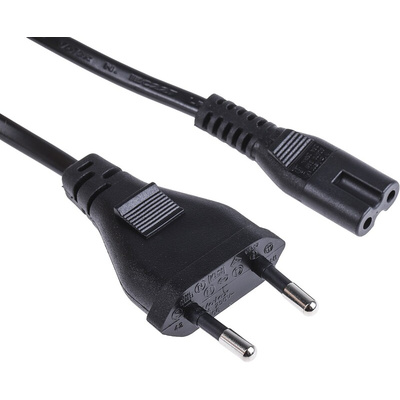

Brought to you from RS Pro, this power cable is terminated with a straight C7 socket at one end and a type XV1 Euro Plug at the other. Commonly known as a cassette or calculator style socket, The two-pin C7 socket is used in a wide range of small or portable appliances. Sometimes known as a Type C - EuroPlug, the Euro Plug can be used in most European countries (excluding the UK and Ireland.) The power cable features a European harmonised mains cable, measuring 1.5 m long and 0.75 mm in diameter. All models are highly reliable and excellent quality.

Features and Benefits

• Euro 2-pin plug
• Harmonised mains cable (H03VV-F)
• Fully moulded connectors
• Reliable integrated strain relief
• Universal C7 Connector

What is the C7 connector used with?

There are various items that would use a C7 connector. They are fairly common within domestic applications. The C7 socket is often commonly known as a cassette or calculator style socket, and can be used in a wide range of small or portable appliances. As an example, some of the devices which take a C7 socket are:

• Video game consoles
• Laptop chargers
• Coffee makers
• Desk fans
• Shavers

What is a Euro plug?

A euro plug is a common type of European plug. It will function in various countries, such as Switzerland, Denmark, Italy and Germany. A British 3-pin outlet and plugs would be found in every UK household and workplace, but these Euro plug types are 2-pin. Although uncommon on UK appliances and machines, the euro plug can still be a common occurrence, especially with items such as shavers and chargers.

What is a power cable assembly?

Power cable assemblies are defined as any power cable which has had a connector installed prior to sale. There are versions which may have one connector and an unterminated end. Some assemblies may have a connector a plug. And some assemblies will even have 2 connectors (IEC lead extension). Depending on the application, there are various types to suit the needs.

Approvals

VDE, SEV, SEMKO, DEMKO, NEMKO, FIMKO, LCIE, KEMA, IMQ, OVE, CEBEC

Approvals

VDE; ASTA; SEV; SEMKO; DEMKO; NEMKO; FIMKO; LCIE; KEMA; IMQ; OVE; CEBEC

Standards

IEC 60320; EN60320

RS PRO Datasheet

RS PRO Wiring and Connectivity Selection Guide 2021
