RS PRO Straight IEC C19 Socket to Straight IEC C20 Plug Power Cord, 2m, Кабель

RS PRO 2 m Black Power Cord, Mains Jumper Power Cable 16 A, IEC C19 and IEC C20 Connectors

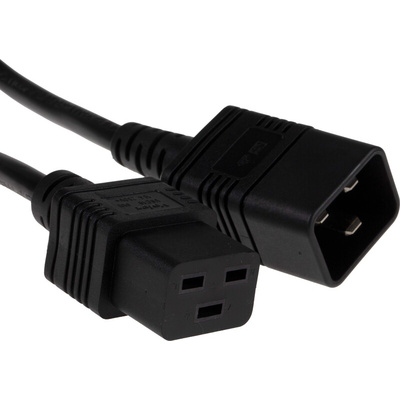

From RS PRO a high quality and durable power cable assembly or power cord for connecting an appliance to a mains power supply. This power cord is fully equipped with an IEC C19 Socket on one end and an IEC C20 type connector on the other that connects to the appliance. The cable features integrated strain reliefs that provide additional protection and support to the connectors and prevents damage caused by excessive bending of the power cord.

Features and Benefits

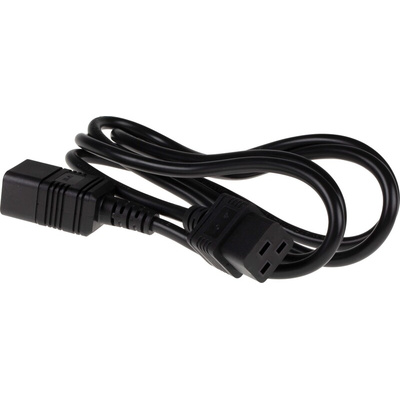

• 2 m Power Cord / power cable assembly


• European harmonised mains cable H05VV-F

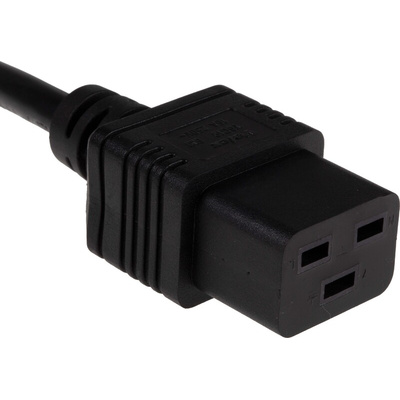

• Connector A IEC C19 Straight female

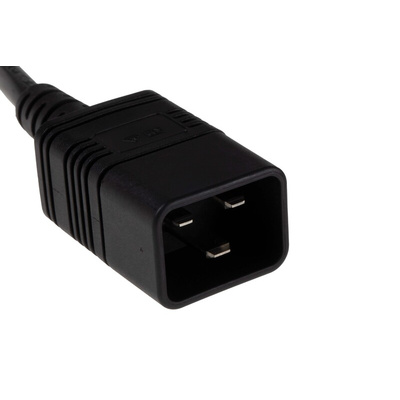

• Connector B IEC C20 right angled male


• PVC Sheath material


• 3-Wire


• 16 A, 250 V


• Weight 175 g


• 65°C Pin temperature


• IEC 60320

Applications

• I.T Applications


• Servers, Data Centres


• Distribution units and many more

What is an IEC C19 / IEC C20 Connectors

This power cord is terminated with a fully moulded IEC C19 plug which is used to connect the power cord to a C20 inlet in the appliance. These C19 and C20 connectors have three pins, a 16 A current rating and a maximum operating temperature range of 65°C. IEC connectors conform to IEC-60320 specifications laid down by the IEC (International Electrotechnical Commission) to ensure the connectors meet common global design standards.

IEC and International Leads

A range of electrical appliance connecting leads, the majority of which are terminated with connectors that conform to IEC 60320. The IEC (International Electrotechnical Commission) is the international standards and conformity assessment body. The drawing illustrates the range of connector types offered within this section - The 'odd' 'C' numbers refer to a socket type connector - mains input - and the 'even' 'C' numbers refer to a plug type connector - the appliance inlet.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Approvals

VDE; OVE; KEMA; NEMA; ASTA

Standards

IEC 60320; EN60320; EN60320-2-2/1
