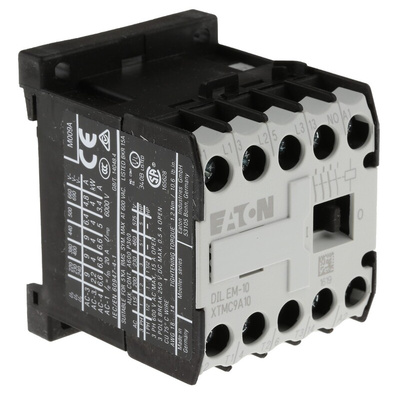

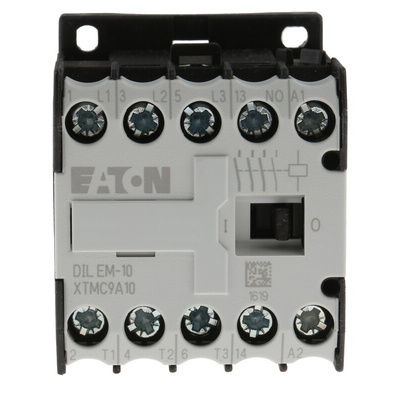

010032 DILEM-10(240V50HZ), Eaton DILEM Series Contactor, 240 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 400 V ac, Контактор

Eaton Contactor, 6kV Impulse Withstand Voltage, 240V AC Coil Voltage - DILEM Series - 010032 DILEM-10(240V50HZ)

When the job calls for sure-fire switching, you can count on this contactor from Eaton. It’s a versatile all-rounder suitable for both non-inductive and inductive loads as well as motor starting and control applications. You get quick switchover times for opening (8 to 18ms) and closing (14 to 21ms), making it a practical choice that delivers fast and secure actuation. Thanks to its short-circuit protection and impulse withstand voltage up to 6kV, you can trust you're shielded against current and overvoltage faults, too.

Features & Benefits

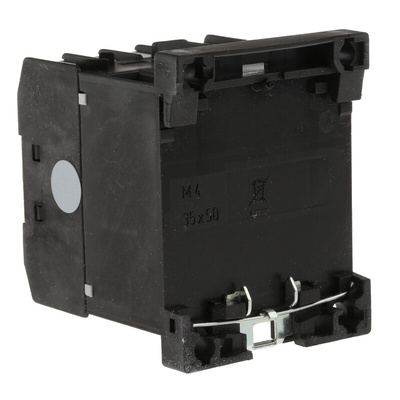

• Can be surface-mounted or clipped directly onto a 35mm DIN rail for flexible installation
• 3-pole device means you can use it to control up to 3 connected circuits
• Mechanical lifespan of 10 million operations assures you it's long-lasting
• IP20 rating means its terminals are touch-proof and you're protected against electric shocks
• Wide operating temperature range from -25°C to +50°C for safe use in harsh industrial workplaces

What size wires can I use this contactor with?

This product suits any wire size from 0.75 to 2.5mm² (18 to 14AWG), so it's a versatile choice.

DILEM-10-240V50HZ Datasheet

Installation Sheet - 010112 22DILEM

Catalogue - Motor Starters
