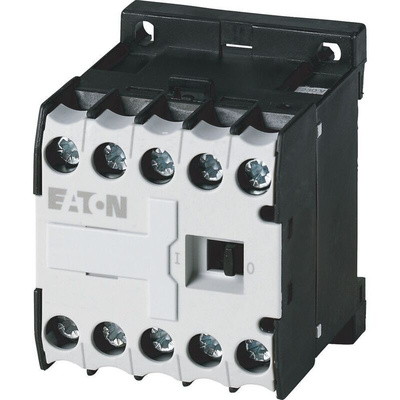

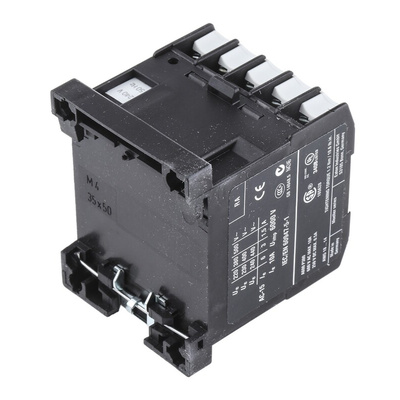

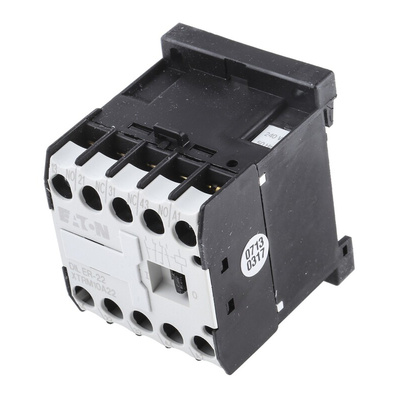

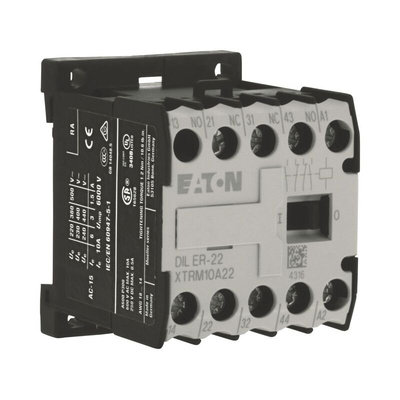

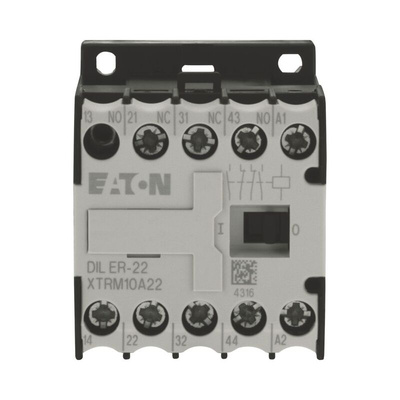

010138 & DILER-22(240V50HZ), Eaton Contactor Relay - 2NO/2NC, 3 A Contact Rating, Контактор

0323066
Номер производителя: 010138 & DILER-22(240V50HZ)Производитель: Eaton
Цена за шт.
10929.00 руб. (С НДС) *
Количество 5+
Цена 10485.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Eaton DILE... Mini Contactor Relays

Eaton's DILE mini contactor overload relay's reflect a long tradition of reliable, code compliant and efficient power distribution in alternative energy, commercial and mining operations. These circuit breakers provide premium protection for overheating wires, overloads and short circuits in residential, commercial, industrial and hazardous areas and are ideally suited for use within harsh environments with high temperatures.

The DILE mini auxiliary contactor relays have compact dimensions for the highest packing densities. Their space-saving size allows these mini contactors to be used wherever small motors or loads need to be controlled and switched. With an extended performance range up to 5.5 kW at 400 V and extensive approvals that mean they are suitable to be used worldwide.

Within the DILER series of contactor overload relays Eaton offers both a spring -loaded terminal and a screw terminal version with interlocked opposing contacts allowing the devices to be expanded to up to 8 contacts.

Features and Benefits

AC drive - for control voltages from 24 V to 600 V, at 50 Hz or 60 Hz
DC drive - for control voltages from 12 V to 250 V
UL and CSA approvals
For controlling motors up to 5.5 kW
DC-operated devices with integrated suppressor circuits
Auxiliary NC with mirror contacts for use in safety-related applications
Low power consumption = can be controlled directly from a PLC

Техническая спецификация
pdfDILER-22(240V50HZ)-323066.pdf
pdfDatasheet
Глубина:
54мм
Диапазон:
xStart
Длина:
58мм
Количество вспомогательных контактов:
0
Номинальное напряжение контакта:
400 В перем. тока
Номинальный ток контакта:
3 A
Нормальное состояние конфигурации:
2NO/2NC
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
-25°C
Серия:
DILER
Тип клеммы:
Винт
Ширина:
45мм
