78815220 ZVV-T0+ZAV-T0, Eaton Switch Disconnector Shaft 25mm for Use with 20 A Switch Disconnector, 25 A Switch Disconnector, 32 A Switch

Eaton Non-Fused Switch Disconnectors - T0 Series Rotary Switches

The T0 series of switch disconnectors from Eaton are compact and robust. Rotary Cam Switches can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. The device consists of a hand actuator, the switch unit and the mounting accessories. This range of isolator switches is also suitable for use in applications where there is a need to manually power down and disconnect electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit. These disconnect switches can also be used as safety switches.

With an IP65 degree of protection, the devices are suited to hard-wearing industrial environments with a rated uninterrupted current of up to 20 A. Available in four different mounting options (surface mounting, flush mounting, rear mounting, and service distribution board mounting). These switches can be selected and configured in a multitude of contact sequences.

• Performs local isolation, manual override & safety switch functions
• T0 Series fit a standard front plate of 45 x 45 mm
• For spare rotary thumb stick (black) see stock no. 176-9759
• For Shaft Extension Kit see stock no. 323-173

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary switch or knife-blade disconnect to isolate and de-energise a circuit. Commonly used in industrial automation and control settings.

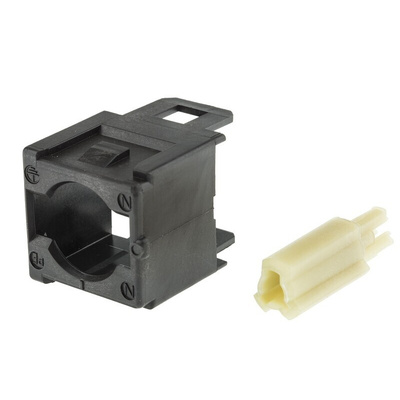

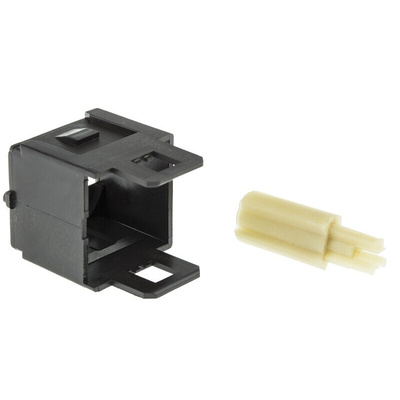

Eaton Shaft Kit For Use With 20A, 25A and 32A Switch Disconnectors - ZVV-T0+ZAV-T0

This hardy and reliable shaft kit from Eaton houses and protects your switch connectors. Its purpose is to stop the electric flow between your input and output sources and enhance safety for a range of applications. It's ideal for control and switching purposes like turning equipment on and off and establishing main and control operations. You can also use it to manually power down and disconnect electrical equipment to carry out repair and maintenance. You'll find it used with T0, T3 and P1 switch disconnectors in industrial automation and control systems.

• IP65 (ingress protection) rating indicates complete protection against dust getting into the working, as well as protection from low-pressure water spray
• Insulates operators from live switches and wires to enhance workplace safety

Why should I protect my switch disconnectors?

Switch disconnectors can get damaged when exposed to water or corrosives. A switch disconnector shaft kit, like this one from Eaton, safeguards your switch disconnectors against water damage and corrosive particles that can lead to malfunction.

Extended Shaft Kit
