SO V750/GBA001, Kraus & Naimer Key Operator for CA10 Series, CA20 Series, CA25 Series, CAD11 Series, CG8 Series, CHR10 Series

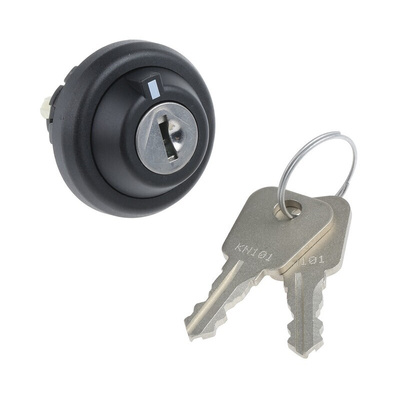

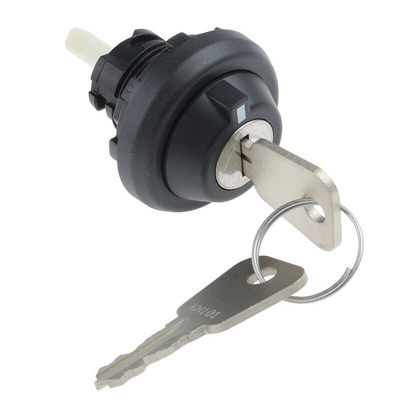

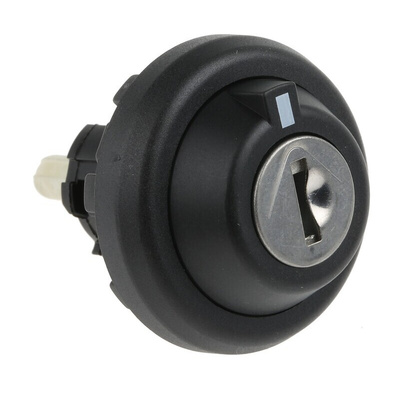

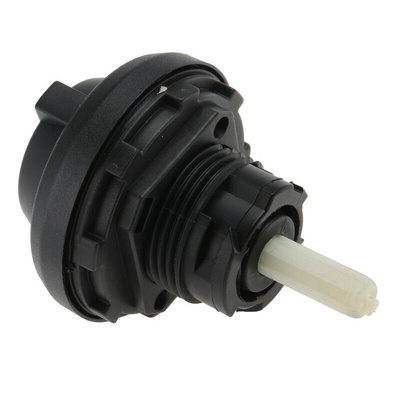

Kraus & Naimer Key Operator with Round Bezel

Introducing Kraus and Naimer's key operator, it is predominantly used with switch bodies. This product can also be referred to as a round key activator. The strategically-structured operator features a round bezel that is comprised of a strong, robust material.

Features & Benefits

• Please note that the key operator is not compatible with voltmeter and ammeter switches
• The keys are removable in any switch position
• Two keys are supplies per one unit
• Single hole panel mounting
• Features a diameter of 30.5 mm (round bezel)
• The key operator is suitable for up to 6 mm panel thickness
• The front panel has an IP66 rating, this means that the operator has protection against dust that may harm equipment. This rating also means that the operator has protection against low-pressure jets that come from all directions
• For use with CA10 series, CA20 series, CA25 series, CAD11 series, CG8 series and the CHR10 series

Note

The legend plates that are supplied with the switch bodies will only fit the switch operators that feature a square escutcheon.

20A ROTARY CAM SWITCHES

Datasheet - SO V750/GBA001
