051786 & DILEM-10(230V50HZ,240V60HZ), Eaton xStart DILEM 3 Pole Contactor - 9 A, 230 V ac Coil, 3NO, Контактор

0326576
Номер производителя: 051786 & DILEM-10(230V50HZ,240V60HZ)Производитель: Eaton
Цена за шт.
10287.00 руб. (С НДС) *
Количество 5+
Цена 9870.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Eaton Contactors - DILEM & DILEEM Series

Eaton's range of DILEM & DILEEM contactors are predominantly used in larger-scale operations, they are designed to provide a long mechanical and electrical life which in turn accomplishes reliability. Users will commonly find these contactors integrated within industrial buildings and factory installations, enabling automated processes of motors and resistive loads

Features & Benefits

Easier engineering through identical construction sizes for AC- and DC-operated contactors
Energy savings and higher packing density in control panel due to minimized heat dissipation
High wiring security through doubled box terminals
Less coupler relays: direct actuation from the PLC for contactors up to 32 A
Easy engineering through integrated suppressor circuits for DC
Wide operating temperature
Surface or DIN rail mounting
Ingress Protection Rating of IP20 on the contacts protecting against solid objects up to 12mm, - has no protection against water

How contactors operate?

If you have asked yourself this question, rest assured you are not the only person that has wondered how contactors work. If you've wondered how do contactors differ from a relay? The following answer will also explain that. A contactor is essentially a relay, it holds very similar functions, but it is typically used in larger-scale applications. In most cases, a contactor is a switch that can be controlled remotely, specifically designed to switch a large amount of electrical power through its contacts.

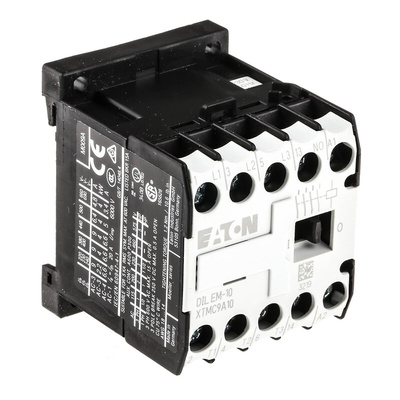

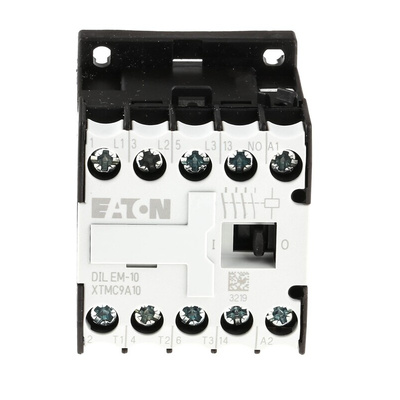

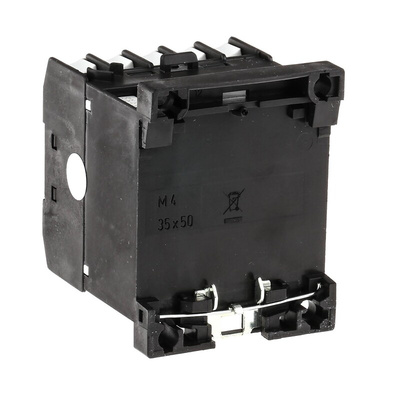

Eaton DILEM-10(230V50HZ,240V60HZ) Contactor

Eaton's range of DILEM & DILEEM contactors are predominantly used in larger-scale operations, they are designed to provide a long mechanical and electrical life which in turn accomplishes reliability. Users will commonly find these contactors integrated within industrial buildings and factory installations, enabling automated processes of motors and resistive loads.

Features and Benefits

• 3 pole
• Conforms to IEC/EN 60947, VDE 0660, CSA, UL standards
• The ambient operating temperature when open is - 25 - 50°C
• The ambient operating temperature when enclosed is - 25 - 40°C
• Weighs just 0.17kg
• Forms part of the DILEM contactor range
• Utilisation category - AC-1: Non-inductive or slightly inductive loads, resistance furnaces, NAC-3: Normal AC induction motors: starting, switch off during running and AC-4: Normal AC induction motors: starting, plugging, reversing, inching
• Also suitable for motors with efficiency class IE3
• Screw terminals
• With auxiliary contact
• For use with the DILEM and DILEEM range
• Has an actuating voltage of 230 V 50 Hz, 240 V 60 Hz

Typical Applications

This range of contactors can be used across a multitude of applications, users will commonly find these contactors being used within factory automation, railway transportation, electrical systems, starting motors, providing control over furnaces and mechanical engineering.

How contactors operate?

If you have asked yourself this question, rest assured you are not the only person that has wondered how contactors work. If you've wondered how do contactors differ from a relay? The following answer will also explain that. A contactor is essentially a relay, it holds very similar functions, but it is typically used in larger-scale applications. In most cases, a contactor is a switch that can be controlled remotely, specifically designed to switch a large amount of electrical power through its contacts.

Техническая спецификация
pdfDILEM-10-230V50HZ-240V60HZ Datasheet
Глубина:
83мм
Диапазон:
xStart
Длина:
58мм
Катушка напряжение:
230 В перем. тока
Количество вспомогательных контактов:
1
Количество полюсов:
3
Номинальное напряжение контакта:
400 В перем. тока
Номинальный ток контакта:
9 A
Нормальное состояние конфигурации:
3NO
Рабочая температура - максимальная:
+40°C
Рабочая температура - минимальная:
-25°C
Серия:
DILEM
Тип клеммы:
Винт
Ширина:
45мм
