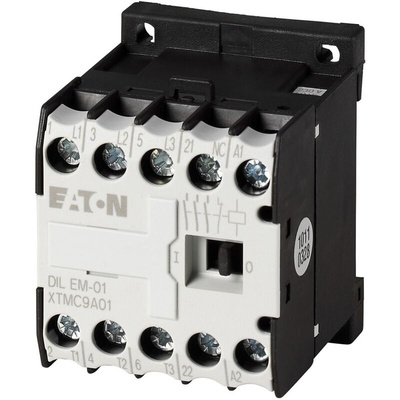

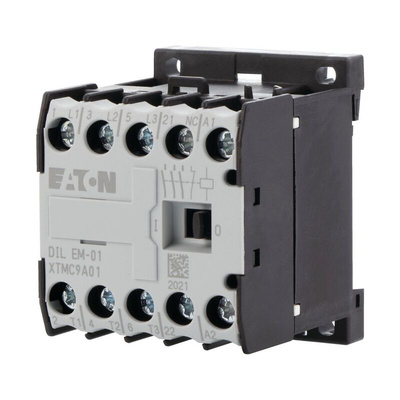

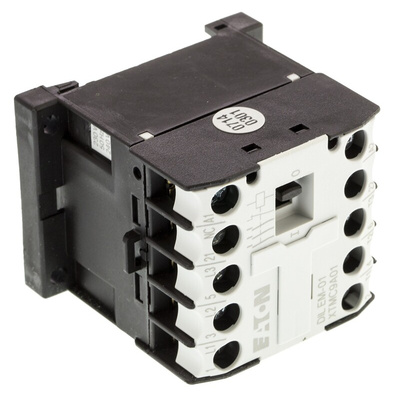

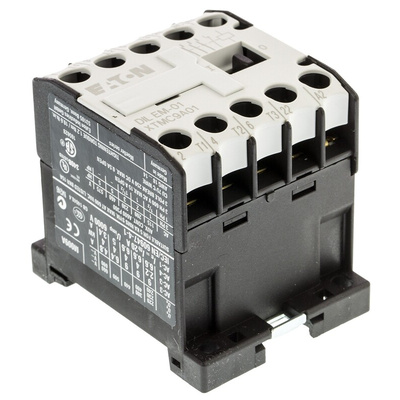

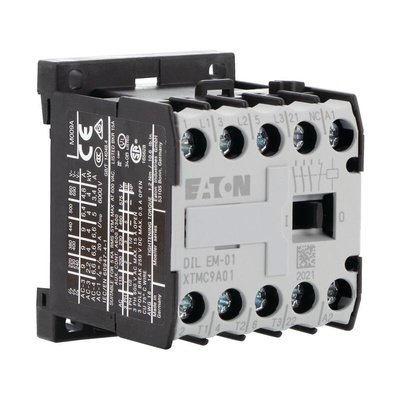

051795 & DILEM-01(230V50HZ,240V60HZ), Eaton xStart DILEM 3 Pole Contactor - 9 A, 230 V ac Coil, 3NO, Контактор

Eaton Contactors - DILEM & DILEEM Series

Eaton's range of DILEM & DILEEM contactors are predominantly used in larger-scale operations, they are designed to provide a long mechanical and electrical life which in turn accomplishes reliability. Users will commonly find these contactors integrated within industrial buildings and factory installations, enabling automated processes of motors and resistive loads

Features & Benefits

Easier engineering through identical construction sizes for AC- and DC-operated contactors
Energy savings and higher packing density in control panel due to minimized heat dissipation
High wiring security through doubled box terminals
Less coupler relays: direct actuation from the PLC for contactors up to 32 A
Easy engineering through integrated suppressor circuits for DC
Wide operating temperature
Surface or DIN rail mounting
Ingress Protection Rating of IP20 on the contacts protecting against solid objects up to 12mm, - has no protection against water

How contactors operate?

If you have asked yourself this question, rest assured you are not the only person that has wondered how contactors work. If you've wondered how do contactors differ from a relay? The following answer will also explain that. A contactor is essentially a relay, it holds very similar functions, but it is typically used in larger-scale applications. In most cases, a contactor is a switch that can be controlled remotely, specifically designed to switch a large amount of electrical power through its contacts.

Eaton Contactors - DILEM & DILEEM Series

Eaton's range of DILEM & DILEEM contactors are predominantly used in larger-scale operations, they are designed to provide a long mechanical and electrical life which in turn accomplishes reliability. Users will commonly find these contactors integrated within industrial buildings and factory installations, enabling automated processes of motors and resistive loads.

These contactors are compact in size, enabling them to fit into DIN 43 880 enclosures. The contactors have IP20 protection, this means that the contactor is protected against solid objects up to 12mm, for example, a person's finger - has no protection against water

Features & Benefits

3 pole
Conforms to IEC/EN 60947, VDE 0660, CSA, UL standards
Has an actuating voltage of 230 V 50 Hz, 240 V 60 Hz
Wide operating temperature
Screw terminals
Surface or DIN rail mounting
For use with the DILEM and DILEEM range
1 N/C = Normally closed

Typical Applications

This range of contactors can be used across a multitude of applications, users will commonly find these contactors being used within factory automation, railway transportation, electrical systems, starting motors, providing control over furnaces and mechanical engineering

How contactors operate?

If you have asked yourself this question, rest assured you are not the only person that has wondered how contactors work. If you've wondered how do contactors differ from a relay? The following answer will also explain that. A contactor is essentially a relay, it holds very similar functions, but it is typically used in larger-scale applications. In most cases, a contactor is a switch that can be controlled remotely, specifically designed to switch a large amount of electrical power through its contacts.

DILEM-01(230V50HZ,240V60HZ) Datasheet
