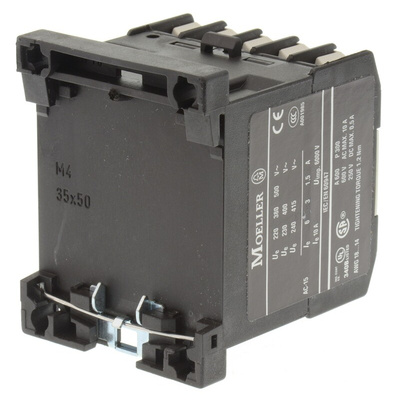

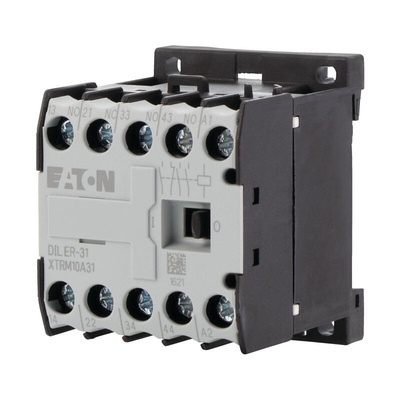

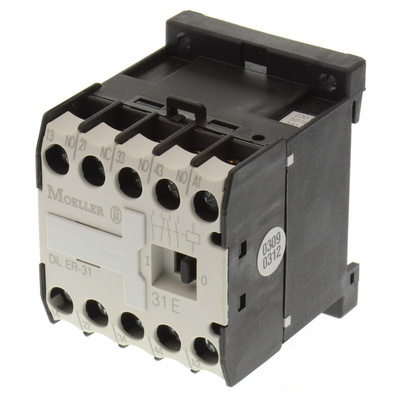

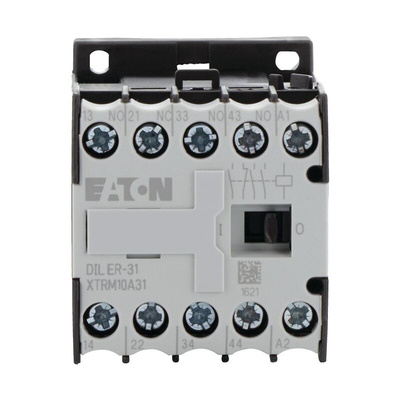

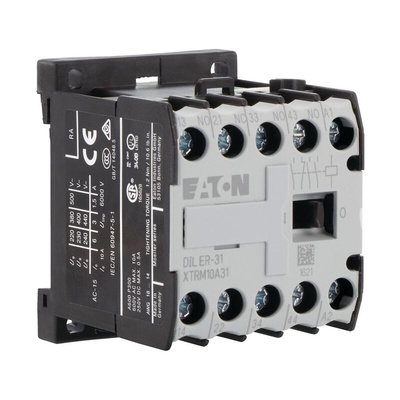

051768 DILER-31(230V50HZ,240V60HZ), Eaton DILER Series Contactor, 230 V ac Coil, 3 A, 3NO + 1NC, 400 V ac, Контактор

Eaton Contactor, Screw Terminals, 52 (L) x 45 (W) x 58mm (D) - DILER Series - 051768 DILER-31(230V50HZ,240V60HZ)

Short on space in your control cabinet? Switch small AC motors and loads with this contactor from Eaton. It has a compact frame size of 52 (L) x 45 (W) x 58 mm (D) to slot easily into busy setups. Interlocking and opposing contacts are on hand to ensure switching is reliable. These are mirrored by the auxiliary contacts to enable safe signalling and monitoring. Low power consumption between 4.6 and 25VA means the device can be controlled by your PLC, so you can fully integrate it with your control system. Climatic proofing helps this contactor handle temperatures between -25°C and +50°C in harsh industrial and plant conditions.

Features & Benefits

• Long-lasting, with a mechanical lifespan of 10 million operations
• Short-circuit protection and isolation between the coil and auxiliary contacts safeguards against electrical faults

Can I use this contactor in fast-paced applications?

Yes, a quick switching time of 8 to 45ms means the unit is capable of 9000 operations in an hour, so boosts productivity.

Is the contactor customisable?

It's possible to mount multiple contactors side-by-side with an interlock (326-740) and extra auxiliary contacts (230-4420) are mountable on the front. This lets you customise the component to suit your setup's needs.

Datasheet - Eaton DILER-31(230V50HZ,240V60HZ)

Instruction Sheet - 051768 DILER-31(230V50HZ,240V60HZ)

Catalogue - Motor Starters, Contractors
