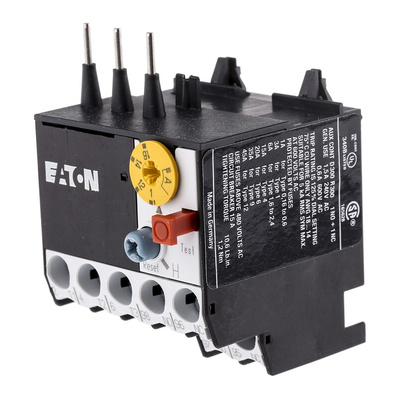

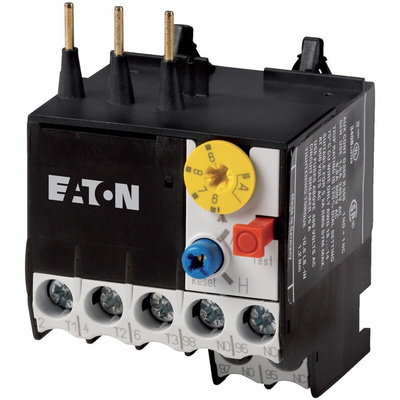

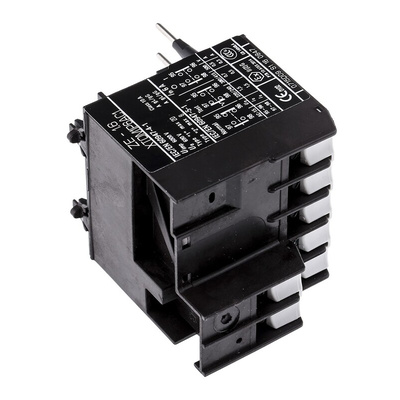

014432 ZE-1,6, Eaton ZE Overload Relay 1NO + 1NC, 1 → 1.6 A F.L.C, 1.6 A Contact Rating, 6 W, 600 Vac, Реле

0326784
Номер производителя: 014432 ZE-1,6Производитель: Eaton
Цена за шт.
20751.90 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Eaton Contactor Overload Relay – ZE Series Thermal Overload Relays

This Eaton Contactor Overload Relay is designed to help your motor continue working in a safe environment by monitoring the current in the motor circuit and breaking the circuit when an electrical overload or phase failure is found. It works by cutting off the current to the motor when a high current situation occurs. As the relay receives the corresponding signal, it trips.

This Eaton product is predominantly designed for imitating the heating prototypes that are a staple for keeping your motors healthy, which increases the motor lifetime. It provides an affordable and efficient way for you to protect your motors, whilst giving you peace of mind that you have sufficient motor protection and control.

Eaton’s reliable and high-quality Overload Relay offers motor control within a multitude of environments, coming with a 600 V ac control voltage, 6W power rating and a temperature range of -5 to +55 °C. Eaton offer a wide range of reliable contactor overload relays to protect machinery from overheating, keeping your business and its operations accessible.

Features and Benefits

• An affordable way of preventing damage to the motor
• Compact in size with a 58mm x 106mm x 45mm (DxLxW)
• Wide operating temperature range of -5 to +55 °C
• Bimetallic tripping mechanism with trip response from 2 to 10 seconds
• Easy to install and reset once they have tripped
• Has test and stop functions, assessing quality of the overload relay
• Automatic and Manual reset methods
• Class 10 A overload

Eaton Overload Relay, NO/NC, 1 to 1.6 A FLC Rating - ZE Series - 014432 ZE-1,6

Protect motors running on a full load current rating of 1 to 1.6A using this overload relay from Eaton. In the event of an extended overload, the bimetallic tripping mechanism shuts down the current in a matter of 2 to 10 seconds. Installation of the relay is easy, thanks to screw terminals to help you make quick and secure connections. Test and stop functions are on hand for performance monitoring.

Features & Benefits

• Automatic and manual reset options help you restart operations after tripping
• Operating temperature range of -5°C to +55°C for safe use in industrial environments

Why would I use an overload relay?

An overload relay is a device that senses when a motor is drawing a current above its rated value and shuts off the current. You can use it to protect the motor from damage caused by overload currents, saving costly replacement and avoiding downtime.

How does a thermal overload relay work?

A thermal overload relay like this one uses a bimetallic strip made up of two dissimilar metals. When they're subjected to an overload current, the metals heat up and expand at different rates, bending the strip to break the power supply.

Note

Eaton formerly known as Moeller

Техническая спецификация
pdfDatasheet - Eaton ZE-1,6
pdfInstruction Sheet - ZE/XTOM
pdfManual - ZE/XTOM Motor-Protective Relay
Вид монтажа:
Direct Contactor
Глубина:
58мм
Диапазон рабочих температур:
-5 → +55 °C
Длина:
106мм
Количество вспомогательных контактов:
2
Метод сброса:
Автоматический, Ручной
Мощность двигателя FLC:
1 → 1.6 A
Мощность номинальная:
6 Вт
Напряжение управления:
600 Vac
Номинальное напряжение контакта:
690 В перем. тока
Номинальный ток контакта:
1.6 A
Нормальное состояние конфигурации:
1NO + 1NC
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-5°C
Серия:
ZE
Тип клеммы:
Винт
Ширина:
45мм
