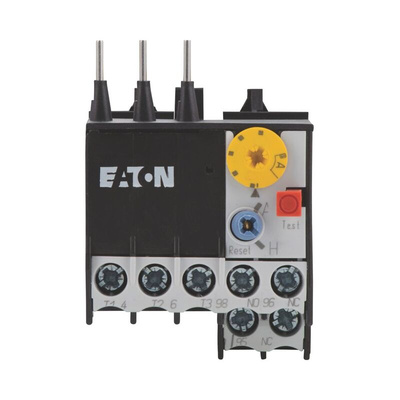

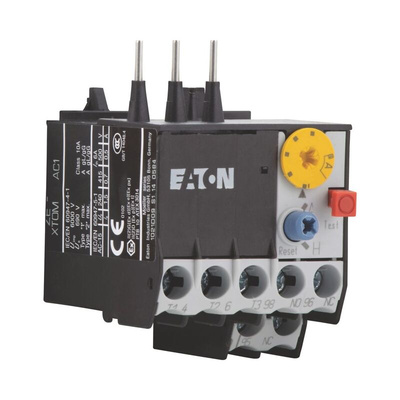

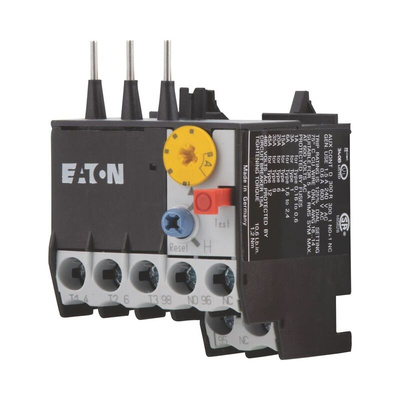

014708 ZE-9, Eaton ZE Overload Relay 1NO + 1NC, 6 → 9 A F.L.C, 9 A Contact Rating, 6 W, 600 V ac, SP, Реле

Eaton Overload Relay, Screw Terminals, Trip-Free Release - ZE Series - 014708 ZE-9

Safeguard your electric motor from excess heat using this overload relay from Eaton. In the event of surplus current or a phase failure, it breaks the circuit to protect motor windings and coils from damage. An FLC motor rating of 6 to 9A means you have free rein to adjust the operating parameters to suit your preferred setting. You can reset the unit manually or automatically for flexibility in its configuration. As it's touch-proof against fingers and the back of your hand, you have peace of mind when handling it. You'll find overload relays like this one used in HVAC systems or manufacturing equipment.

Features & Benefits

• Test button for convenient troubleshooting
• Screw terminals ensure a secure hold on wiring
• ATEX certification indicates it's suitable for the protection of Ex e motors installed in hazardous areas
• Durable performance, thanks to a broad operating temperature range of -5°C to +55°C

How do I mount this relay?

You can fit this device by directly attaching it to the main circuit of your machinery.

Is this relay shock-resistant?

Yes, you can depend on its durability as it's been tested to withstand mechanical shocks of 10g for up to 10ms.

Note

Eaton formerly known as Moeller
