MU454488FPA(MK), NSF Rotary Switch Shaft Assembly for use with MU-MK Series

Standard Shaft Assembly & Wafers

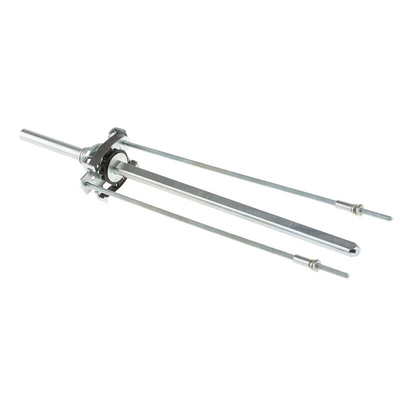

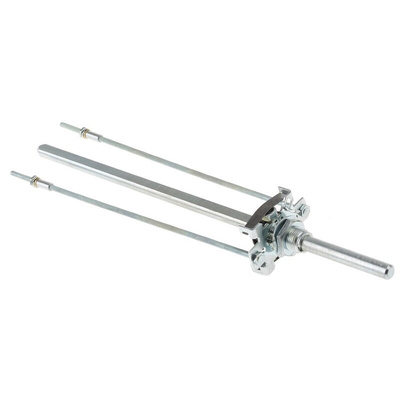

Standard Shaft Assembly

Double-spring detent mechanisms in standard size
Life expectancy >100000 detent operations
30° indexing and adjustable end stops
Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)
6mm diameter shaft and M10 x 0.75 mounting bushes
Overall length 190mm, front shaft length 40mm
Optional accessories are available for to suit individual requirements

Wafers

• 327-765 BBM
• 327-771 BBM
• 327-787 BBM
• 327-793 BBM
• 327-916 BBM
• 327-822 MBB
• 327-838 MBB
• 327-844 MBB

Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts
Available in break before make (bbm), and make before break (mbb) versions
40mm diameter

Note

For the 6 mm mounting shaft assembly see stock number 327-894
