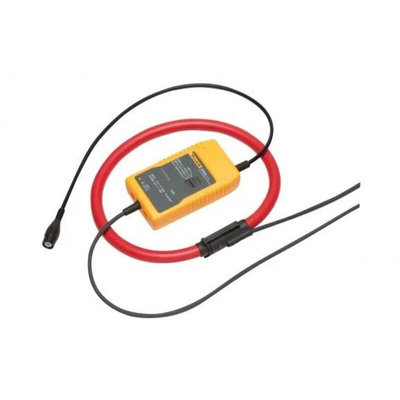

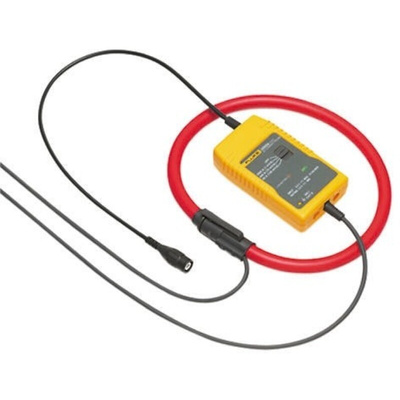

I3000S FLEX-36, Fluke i3000S Current Probe, AC, Rogowski Coil Adapter, 3kA ac AC Max, Current Output, Токоизмерительные клещи

i3000s Flex-36 standard pliers, 915 mm

Standard AC current pliers Inspired by the principle of the Rogowski coil.
Can measure intensity up to 3000 A when used with oscilloscopes and recorders.
Its flexible measurement head is light and can be easily and quickly installed into hard-to-reach places.
Three ranges: 30 A, 300 A and 3000 A, 1, 10 or 100 mV/A output.
Maximal conductor diameter: 178 mm.
Certified CAT III 600 V.

Supplied with

2 AA batteries, BNC adaptor/male 4 mm plug and user manual.

FLUKE Current Probe, 400h Battery Life, 2m Cable - I3000S FLEX-36

Need to know how much current is flowing through your circuits? This current probe from FLUKE lets you find out with a single touch. The unit's Rogowski coil adapter means it calculates the current level by sensing the voltage generated from the AC magnetic field in the conductor. To bring your measurement full circle, you can connect the probe to your oscilloscope or a digital recorder that tracks changes in the value. As it's designed to handle a maximum conductor diameter of 914mm, this device helps you stay in the thick of things when measuring large conductors.

Features & Benefits

• Best accuracy of ±1% for reliable testing
• Cable length of 2m helps enable long-distance operation
• Battery life of 400 hours for lasting performance

Applications

• Robotic systems
• Medical technology
• Electrical engineering
• Control panels

What's the difference between a current probe and a current clamp?

Current probes don't have jaws like current clamps, so you can carry out tests on your circuits without physical contact. They are typically combined with external measuring instruments like oscilloscopes. When you pair this probe with an oscilloscope, you can measure currents of up to 3000A AC, making it suitable for use with heavy-duty equipment.

’Buy a Fluke, Get one Free’ is back!!
Between March 1st, 2024 and August 31st, 2024, the customer spends £150 or more on a qualifying Fluke product (Fluke Industrial, Fluke Calibration, Fluke Networks, or Beha-Amprobe).
Customer claims their tool online at: www.fluke.co.uk/freefluke
A proof of purchase in the form of a receipt or invoice is required.

Fluke i3000s Flex AC Current Clamp Data Sheet

Instruction Sheet - I3000S FLEX-36
