HOBUT Split-Core Current Transformer
The HOBUT split-core current transformer has a unique clip-together feature enabling high-speed permanent installation and suitable for primary currents from 100A to 800A. It is for installation into existing networks without the need to disconnect cable circuits or busbars. The system rated voltage ranges between 0.72kV and 3kV and a current ratio of 600:5.
Supplied with:

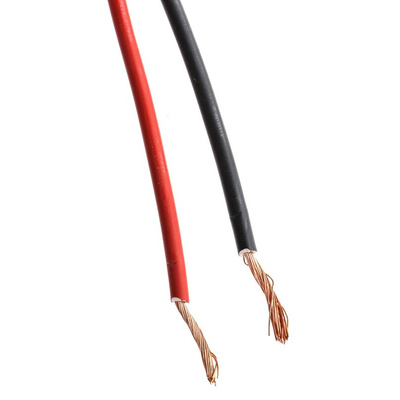

Moulded case with 1m flying lead.
Features and Benefits
Clip-fit
Continuous current: 1.2 x rated current
Frequency ranges between 50Hz and 60Hz
Insulation rating is 3kV for 1 minute
It is supplied with moulded case with 1m flying lead
Operating temperature ranges between -30°C and 85°C
Overall width of 116mm, depth of 36mm and height is 114mm
Certifications
CE certified
UL94VO approved
IEC185
BS 7626
BSEN 60044-1
IEC 60044-1
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
Selection GuideCTSCM40600/5-5/1 Datasheet| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
