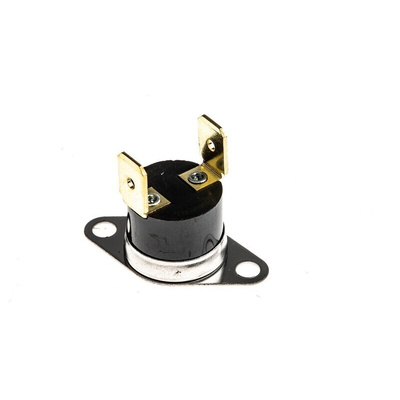

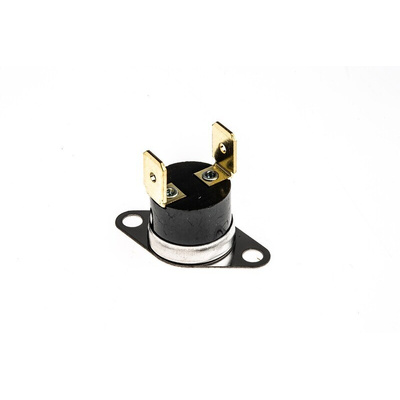

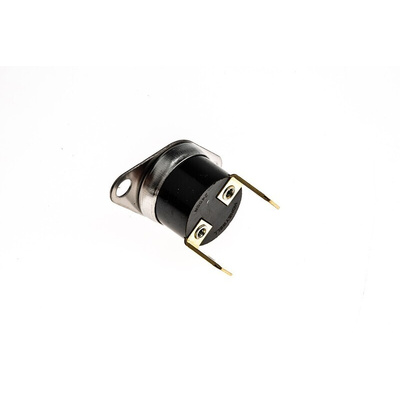

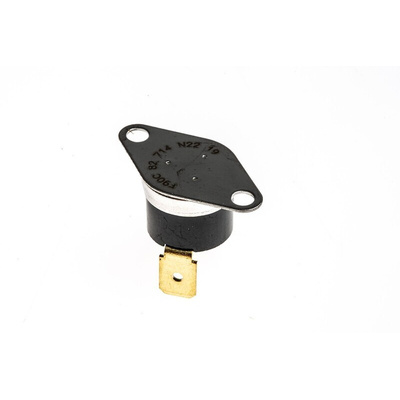

2455R 82-714 F90C, Honeywell Bi-Metallic Thermostat, Opens at +75°C, Closes at +90°C, +150°C Max, NO, Automatic Reset, Bracket Mount, Термостат

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
•Phenolic body with stainless steel end cap.
•1/4in tab termination.
•Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
•Dielectric strength of 2000 Vac.
•N/C types open on temperature rise.
•N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

Honeywell Thermostat, 15A Current Rating, +75°C Opening Temperature - 2455R Series - 2455R 82-714 F90C

If you need to automatically regulate the temperature in your workplace, choose this bimetallic thermostat from Honeywell. To keep temperatures in a precise range, it opens at +75°C and closes at +90°C. It has silver and nickel alloy contacts that are highly conductive and resistant to corrosion for efficient switching. Thanks to its self-reset function, this device is ideal for use in continuous process applications such as central heating and water heaters.

Features & Benefits

• High current rating of 15A for use in heavy-duty applications
• Wide operating temperature range between 0°C and +150°C for use in harsh conditions

Applications

• Commercial ovens
• Steam turbines
• Water heaters
• Automotive industry

What's the housing of this thermostat made of?

This unit's housing is made of phenolic material, which is resistant to heat and chemicals for use in demanding environments.
