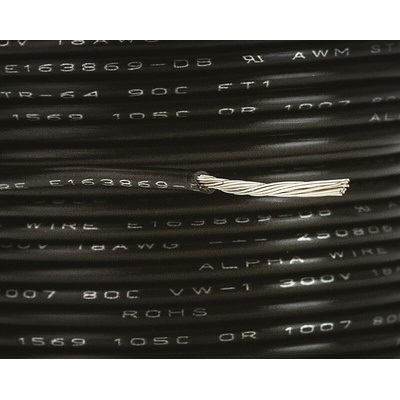

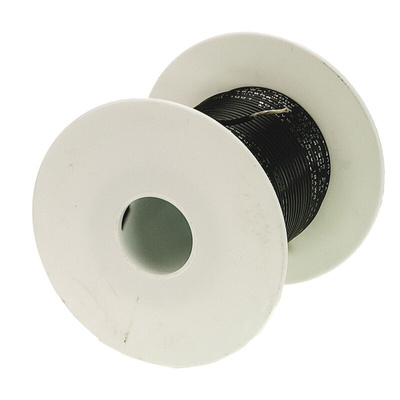

3055 BK005, Alpha Wire Black 0.75 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 30m, PVC Insulation

Belden Alpha Wire Hook Up Wire, 300 V, PVC

When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire from Belden as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.

Features and Benefits:

• Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

• Colour-coded insulation for easy circuit identification

• Easy to handle, strip and terminate

• PVC insulation

• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Applications:

Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1

Belden Alpha Wire Unshielded Hook-Up Wire, 0.81mm² Cross-Sectional Area - Premium Series - 3055

Choose this hook-up wire from Belden's Alpha Wire range to ensure your electrical devices function reliably. It's commonly used to connect the internal relays and circuits of motors and electronic tools. Tinned copper conductor material has excellent conductivity and corrosion resistance to ensure a long-lasting and reliable connection. The cable is sheathed in PVC (polyvinyl chloride), so it can withstand the impact and exposure to chemicals expected in demanding environments. You can use this versatile wire in a wide range of domestic and commercial applications.

Features & Benefits

• Ample length so you can cut it according to your specifications
• Maximum pull tension of 12.6lbs to prevent wear and tear in heavy-duty applications
• Flame-retardant for enhanced fire safety
• Unshielded design means it doesn't need to be grounded, saving you time and effort during installation

Applications

• Automotive industry
• Electrical circuits
• Networking devices
• Power stations

Can I use this hook-up wire at extreme temperatures?

This hook-up wire has a broad operating temperature range of -40°C to +105°C, making it suitable for use in a variety of demanding environments.
