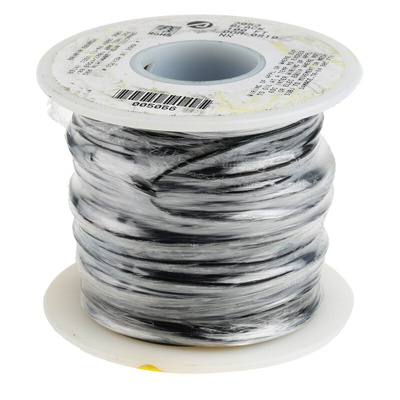

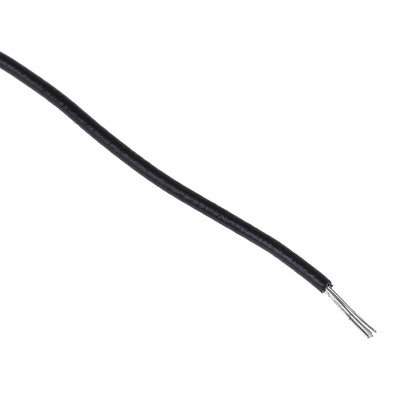

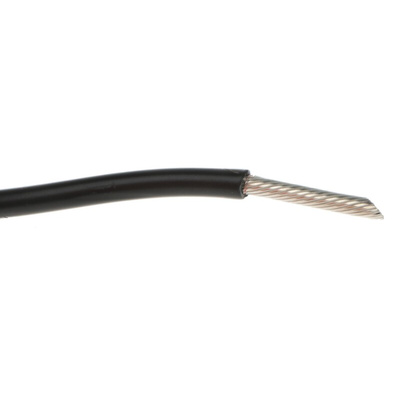

3053 BK005, Alpha Wire Premium Series Black 0.52 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 30m, PVC Insulation

Belden Alpha Wire Hook Up Wire, 300 V, PVC

When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire from Belden as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.

Features and Benefits:

• Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

• Colour-coded insulation for easy circuit identification

• Easy to handle, strip and terminate

• PVC insulation

• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Applications:

Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1

Belden Alpha Wire Single Core Cable Hook-Up Wire, 0.51mm² Cross-Sectional Area - Premium Series - 3053

Use this robust and reliable hook-up wire from Belden's Alpha Wire range to keep your electrical equipment operating smoothly. It's wrapped in PVC (polyvinyl chloride) material, which has excellent insulating properties and avoids overheating. As the cable is unshielded, you'll find it easy to strip and terminate for quick installation. It also delivers a bend radius 10 times its cable diameter for flexible wiring in tight spaces.

Features & Benefits

• Tinned copper conductor is resistant to corrosion even in wet environments
• Broad operating temperature range of -40°C to +105°C for use in extreme conditions
• Flame-retardant PVC insulation means it self-extinguishes in the event of a fire
• 1.75mm outer diameter for durability

Applications

• Telecommunications
• Domestic appliances
• Commercial catering

What is a single-core cable?

A single-core cable like this one is also known as a solid-core cable. It has only one strand of conductor, which is made from braided copper. Single-core cables are tougher than stranded cables.
