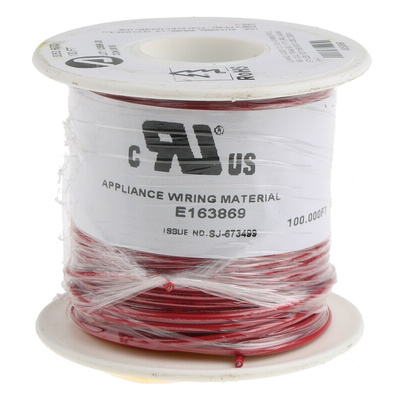

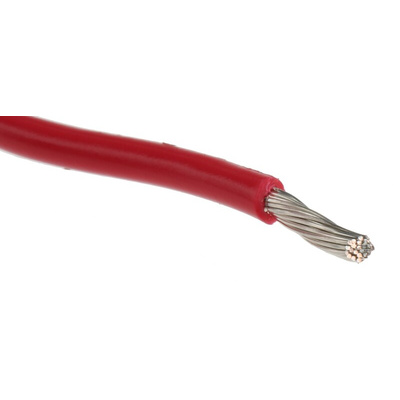

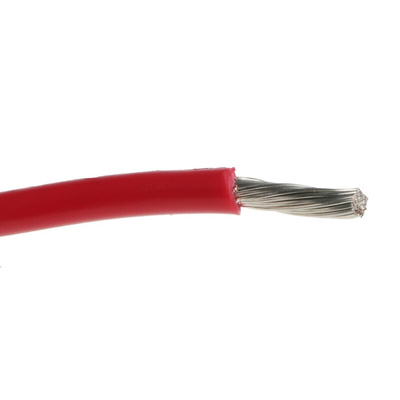

3053 RD005, Alpha Wire Premium Series Red 0.52 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 30m, PVC Insulation

Belden Alpha Wire Hook Up Wire, 300 V, PVC

When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire from Belden as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.

Features and Benefits:

• Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

• Colour-coded insulation for easy circuit identification

• Easy to handle, strip and terminate

• PVC insulation

• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Applications:

Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1

Belden Alpha Wire Red Hook-Up Wire, 20AWG, PVC - Premium Series - 3053

For stable electrical connections in your enclosed machines, use this hook-up wire from Belden's Alpha Wire range. The conductor is made from robust tinned copper, which is highly conductive and resistant to corrosion, so delivers effective long-term performance. Due to the length you'll have sufficient stock for a long-range connection between your devices. You can also cut it to size for multiple applications.

Features & Benefits

• Broad operating temperature range between -40°C and +105°C for use in demanding environments
• Bend radius 10 times the cable diameter means it's highly flexible
• Bright red colour makes it easy to see in busy setups
• PVC body is impact-resistant for durability

Applications

• Control panels
• Agricultural equipment
• Food industry

Can I use this wire in areas at risk of fire?

Yes, you can. This wire has flame-retardant properties so you can safely use it in places where fire is likely.
