78819001 T0-1-102/E/EZ-P1, Eaton, DP 2 Position 90° On-Off Cam Switch, 690V ac, 20A, Toggle Actuator, Поворотный переключатель

Eaton Rotary Cam Switches - T0 Series

The T0 series of rotary cam switches and switch disconnectors from Eaton are compact and robust. Rotary Cam Switches can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. The device consists of a hand actuator, the switch unit and the mounting accessories. This range of cam switches is also suitable for use in applications where there is a need to manually power down and disconnect electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit. These cam switches can also be used as safety switches.

With an IP65 degree of protection, the devices are suited to hard-wearing industrial environments with a rated uninterrupted current of up to 20 A. Available in four different mounting options (surface mount, flush-mount, rear mount, and service distribution board mount). These cam switches can be selected in a multitude of contact sequence configurations.

This professional range of cam switches offers corrosion resistance, weather sustainability, insulating material resistance to normal heat and fire due to internal electric effects and more. It comes with various advantages including high reliability, high adaptability, low power usage and makes the product efficient in its performance.

Features and Benefits

• Emergency stop provision
• Flexibility in application design
• Variety of mounting options
• Option of either 2, 4, 6 or 8 auxiliary contacts
• 45, 60 or 90° switching angle
• High precision
• Long mechanical lifespan
• Low power consumption
• Multipole and multi position (up to 4 positions for bespoke switching operations)
• Performs local isolation, manual override & safety switch functions
• T0 Series fit a standard front plate of 45 x 45 mm
• For spare rotary thumb stick (black) see stock no. 176-9759

Applications

• Branch circuits
• Circuit breaker control panel switch
• Electric engineering
• Industrial automation
• Low-voltage cam switch technology
• Motor disconnect applications
• Off-load switch
• Change-over switch
• Process control engineering

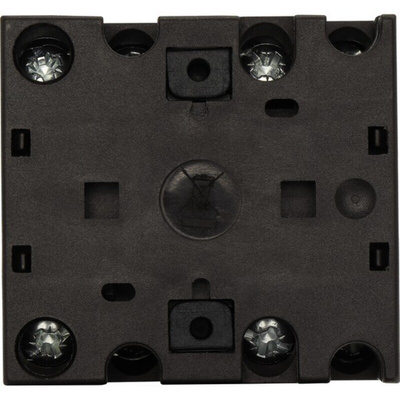

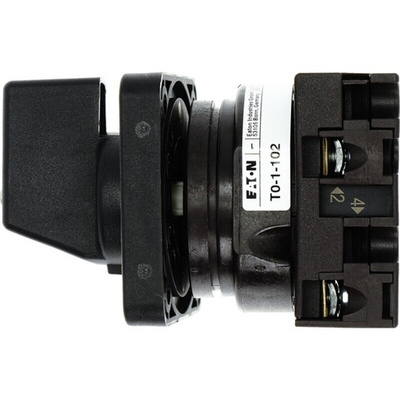

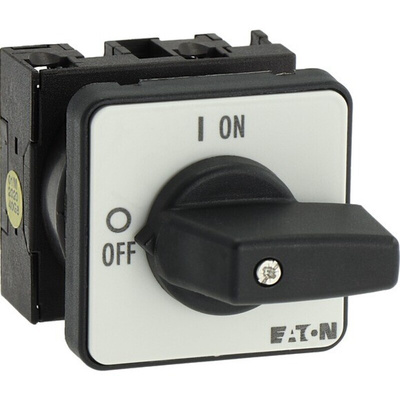

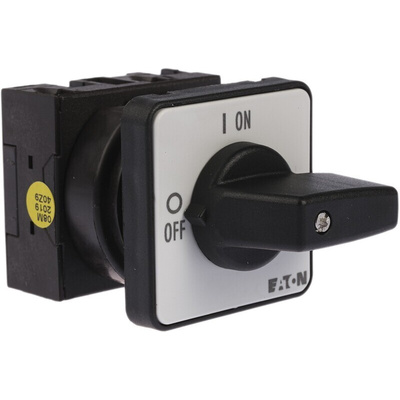

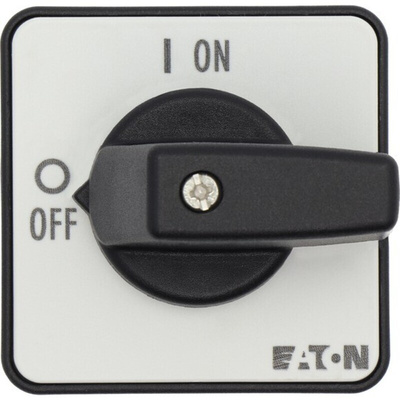

Eaton Rotary Cam Switch With Toggle Actuator, 2 Positions, 20A - T0 Series - 78819001 T0-1-102/E/EZ-P1

Use this rotary cam switch from Eaton as a control switch or main on/off switch. Its IP65 (ingress protection) rating indicates it's protected against dust and low-pressure water jets, making it suitable for use in harsh environments. The unit has compact dimensions of 48 (length) x 48 (width) x 100mm (depth) to save space. Its maximum voltage of 690V AC makes it a good choice for high-power applications. This versatile rotary switch is suitable for use in industrial, trade and building automation environments.

• Screw terminals make simple and secure connections
• Conveniently supplied with centre mounting accessories to make assembly simple
• Thumb grip for ease of handling and improved safety during operation

Can I lock this rotary switch?

Yes, you can lock this rotary switch with a padlock when it's in the off position. This ensures safe lock-out during equipment maintenance and repair, reducing the risk of injury to operators.

How easy is it to wire this rotary switch?

This rotary cam switch has an enclosure that offers ample space for cabling, which makes wiring straightforward. It's also conveniently supplied with an earth terminal for effective grounding.
