78819002 T0-2-1/E/EZ-P1, Eaton, 3P 2 Position 90° On-Off Cam Switch, 690V ac, 20A, Rotary Actuator, Поворотный переключатель

Eaton Rotary Cam Switches - T0 Series

The T0 series of rotary cam switches and switch disconnectors from Eaton are compact and robust. Rotary Cam Switches can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. The device consists of a hand actuator, the switch unit and the mounting accessories. This range of cam switches is also suitable for use in applications where there is a need to manually power down and disconnect electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit. These cam switches can also be used as safety switches.

With an IP65 degree of protection, the devices are suited to hard-wearing industrial environments with a rated uninterrupted current of up to 20 A. Available in four different mounting options (surface mount, flush-mount, rear mount, and service distribution board mount). These cam switches can be selected in a multitude of contact sequence configurations.

This professional range of cam switches offers corrosion resistance, weather sustainability, insulating material resistance to normal heat and fire due to internal electric effects and more. It comes with various advantages including high reliability, high adaptability, low power usage and makes the product efficient in its performance.

Features and Benefits

• Emergency stop provision
• Flexibility in application design
• Variety of mounting options
• Option of either 2, 4, 6 or 8 auxiliary contacts
• 45, 60 or 90° switching angle
• High precision
• Long mechanical lifespan
• Low power consumption
• Multipole and multi position (up to 4 positions for bespoke switching operations)
• Performs local isolation, manual override & safety switch functions
• T0 Series fit a standard front plate of 45 x 45 mm
• For spare rotary thumb stick (black) see stock no. 176-9759

Applications

• Branch circuits
• Circuit breaker control panel switch
• Electric engineering
• Industrial automation
• Low-voltage cam switch technology
• Motor disconnect applications
• Off-load switch
• Change-over switch
• Process control engineering

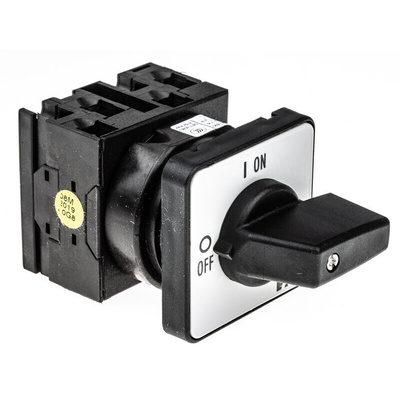

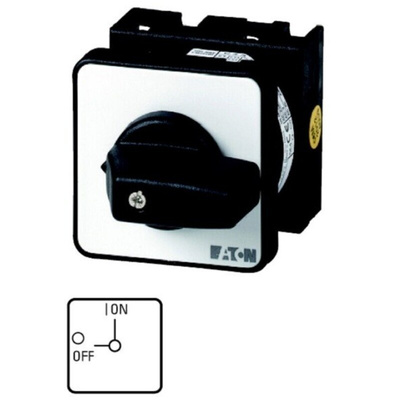

Eaton Rotary Cam Switch With Rotary Actuator, 2 Positions, 20A - T0 Series - 78819002 T0-2-1/E/EZ-P1

This manually actuated rotary switch from Eaton is designed for switching and control applications. It's used to turn machinery on and off, and it can also be used as a safety switch to disconnect the power supply to isolated parts of a circuit during maintenance. The unit is supplied with an actuator and mounting accessories for convenient and quick assembly. Its screw terminals ensure a secure connection that won't easily shake loose, even in the event of heavy vibrations.

• Compact dimensions of 48 (length) x 48 (width) x 85mm (depth) to save space
• Mechanical lifespan of over 4 million cycles for reliable, long-lasting performance
• IP65 (ingress protection) rating indicates protection against dust and low-pressure water jets
• Thumb grip for ease of operation
• High voltage rating of 690V AC for use in heavy-duty applications

What type of electrical wires are compatible with this rotary switch?

You can use both solid and stranded wires with this rotary switch, as well as flexible conductors with ferrules, making it a versatile choice.

Eaton

CSA APPROVAL LR 12528

Datasheet - Eaton T0-2-1/E

Datasheet - Eaton EZ-P1

Instruction Sheet - T0 Cam Switches
