78628225 T0-1-8220/E/EZ-P1, Eaton, SP 2 Position Changeover Cam Switch, 20A, Поворотный переключатель

Switches-22mm Single Hole or Standard Three-hole Flush Mounting

Black thumb-grip handle and silver escutcheon plate
Conform to IEC947/EN 60947
Maximum panel thickness 5mm
48 x 48mm switch front plate
Finger-proof terminals
IP65 for flush mounting three- hole mounting and IP55 for 22.5mm hole mounting (supplied with adaptor for single 22.5mm hole mounting)
Operating current: 20A
Operating temperature: –25 to +50°C

Approvals

UL, CSA

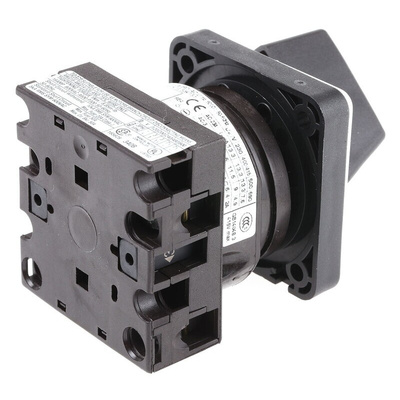

Eaton Rotary Switch, 690V AC Rated Operational Voltage, 20A Rated Uninterrupted Current - 78628225 T0-1-8220/E/EZ-P1

When you're looking for an easy way to switch power between two electrical circuits, use this panel-mounted rotary switch from Eaton. It has two positions, clearly labelled 1 and 2, and a thumb grip you can use to select either of them. Turning the switch causes the current entering the unit to flow to the circuit linked to its new position by closing one contact and opening another. You'll find simple switches like this one in variable-speed fans, light systems and military communications equipment.

Features & Benefits

• Broad operating temperature range between -25°C and +40°C when enclosed, so it's suitable for use in demanding conditions
• 6,000V AC rated impulse withstand voltage for reliable electrical safety
• Mountable in any position for flexibility
• IP65 rating indicates it's dust-tight and protected against water projected from a nozzle

What's the thickest panel I can mount this unit on?

This rotary switch is designed for mounting on panels no thicker than 5mm.

What size is this switch?

This unit has a width and height of 48mm and a maximum depth of 81mm when mounted, so it's suitable for use in compact setups.

Note

Eaton formerly known as Moeller

CSA APPROVAL LR 12528

DS-031728-T0-1-8220_E-20140925

Instruction Sheet - T0 Cam Switches: Mounting
