78819010 T0-3-8007/E/EZ-P1, Eaton Voltmeter Cam Switch, 20A, Поворотный переключатель

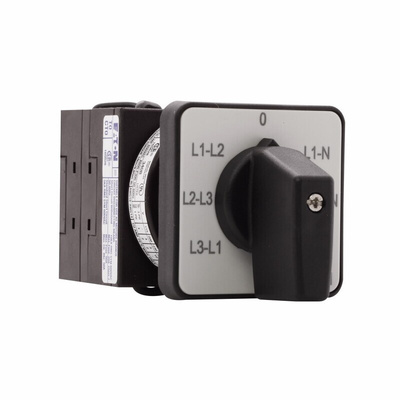

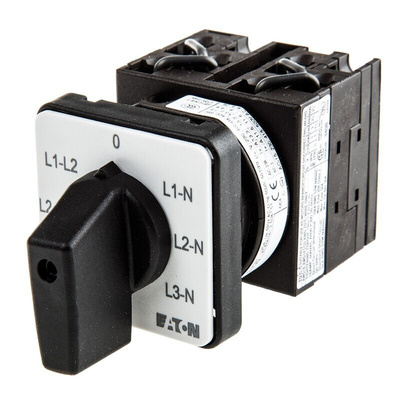

Eaton Rotary Switch, 6 Positions, 45° Throw - 78819010 T0-3-8007/E/EZ-P1

Easily control and monitor your machinery's electrical circuits with this rotary cam-operated switch from Eaton. It handles a maximum voltage of 690V AC and up to 20A current, making it suitable for heavy industrial use. Three poles allow you to operate three circuits at the same time, boosting productivity while simplifying your setup. The device's six positions are suitable for switching measurements between two phases or between phase and neutral.

Features & Benefits

• Mechanical lifespan of 400,000 operations for long-term reliability
• Climate-proofing against damp heat keeps it running even in the most demanding environments

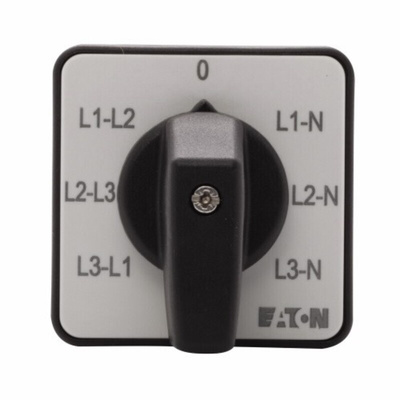

• Fitted with black thumb grip and front plate for ease of use
• Dimensions of 48 (length) x 48 (width) x 100mm (height) to fit easily into busy control panels

How should this switch be mounted?

You can mount this switch directly on your service distribution board or it can be flush-mounted to a panel and secured from the back.

Is this switch waterproof?

A rating of IP66 means the unit's fully sealed against dust and protected against strong jets of water, so can be used in areas where washdowns take place.

CSA APPROVAL LR 12528

Datasheet

Instruction Sheet - Series T0(3)
