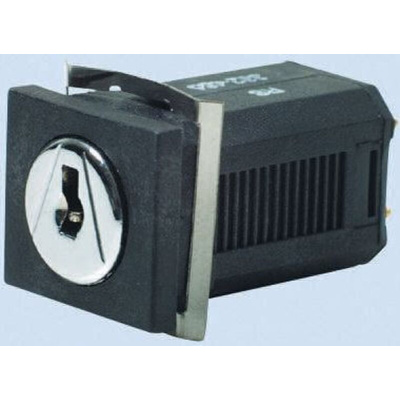

60013, Saia-Burgess Key Switch, 100 mA @ 30 V dc 3-Way Common-Key, Выключатель с ключом

Miniature Key Switches

Rectangular Bezel
3 position selection
Gold plated contacts
Panel Clip fixing, panel hole cutter stock no. 605-633
Panel Cut-out 19 x 19
PCB connections (hand soldering possible)
Test Voltage: 1KV for 1 min
Supplied with 2 identical keys. Spare Keys not available

Saia-Burgess Miniature Key Switches

The Saia-Burgess miniature key switch has a single three through (DP3T) contact configuration. This 3-position key switch has a contact current rating of 100mA and voltage rating of 30VDC.

Features and Benefits

Compact
Simple clip mounting minimises installation time
Low current rating
Rectangular bezel
Switch operation is OFF-ON-ON
Common key
Through hole terminal
Glass fibre reinforced nylon case material
Depth behind panel is 19.8mm
Key index angle is 90°
Gold plated brass (stationary) and gold-plated phosphor bronze (movable) contact material
Mechanical life is 50000 operations
Operating temperature ranges between -20°C and 60°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

E-Series / M-Series Key Switches
