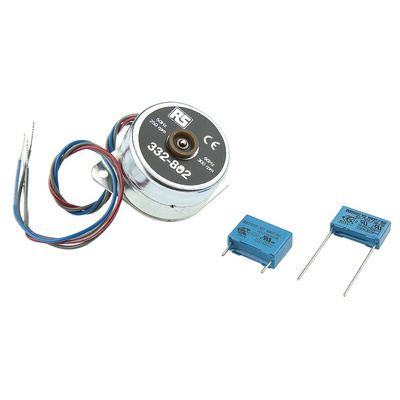

9904 111 32311, Philips 9904 Reversible Synchronous AC Motor, 1.7 W, 2 Phase, 24 Pole, 110 → 240 V, Двигатель

Dual Voltage, Reversible

Consisting of two separate phases wound on 12 pole pairs, which when connected in either series or parallel will allow the motor to be run from 240Vac or 110Vac respectively. The motor is provided with two phasing capacitors which, depending on connections, will either forward or reverse the motor direction
Supply voltage tolerance ±10%. Input power at 240 V, 1.7 W, 110 V, 0.8 W. Working torque at 240 V, 7 mNm, 110 V, 4 mNm

AC Synchronous Motors

These synchronous motors are for direct driving from an a.c. supply. Ideally suited for time driving in instrumentation, machine and process control. The smaller units can be directly connected to the synchronous gearboxes (typical stock no. 332-868 etc).

Synchronous motor and gearboxes

Synchronous Gearboxes Motor-Gearbox Assembly Instruction

Synchronous Motor
