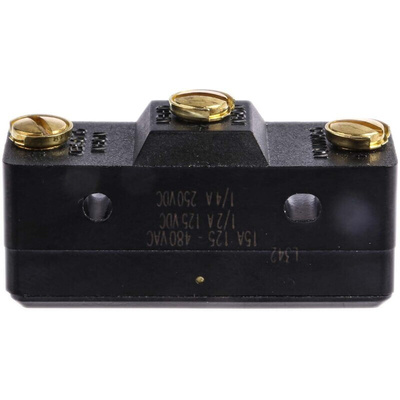

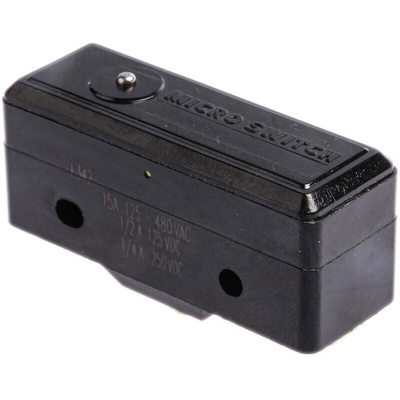

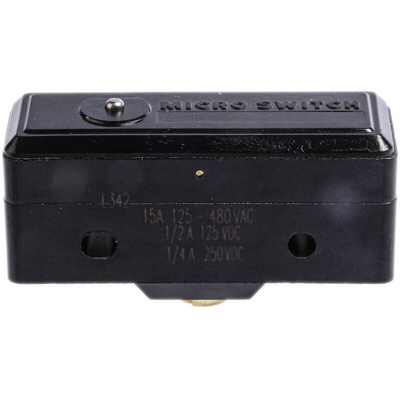

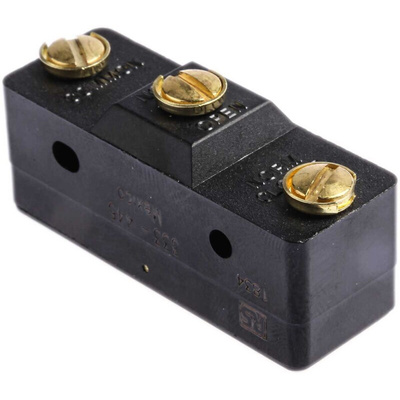

BZ-2R-A2, Honeywell Pin Plunger Micro Switch, Screw Terminal, 15 A @ 125 V ac, SPDT, Микропереключатель

Heavy-duty Type (a) Microswitch

Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A @ 480Vac/28Vdc
Contact material; silver

Approvals

UL; CSA

Honeywell Pin Plunger Microswitch, 15A at 125V AC, SPDT - BZ Series - BZ-2R-A2

Reliably open and close your electrical connections with this microswitch from Honeywell. It's a small-scale limit switch that works with low-level currents of up to 15A at 125V AC (alternating current). The pin plunger attaches to a circuit in your industrial machinery to cut off power when the circuit is about to overload. This helps prevent wear and damage to your machinery to help ensure it remains in optimal condition.

Features & Benefits

• Wide operating temperature range of -55°C to +85°C for use in a variety of demanding environments
• NO/NC (normally open/normally closed) contacts for dual-purpose set-up
• Operating force of 3.61N (newtons) for precise, rapid current switching
• Screw terminals for a secure connection

Applications

• Microwaves
• Elevator manual switches
• Air pressure detection
• Washing machines
• Air conditioning units

Can I use this microswitch in harsh environments?

This microswitch is housed in a moulded plastic casing to keep it safe from contaminants and physical damage. The switch also features silver-plated contacts to protect against corrosion, ensuring a reliable connection even in harsh environments.

Approvals

UL; CSA
