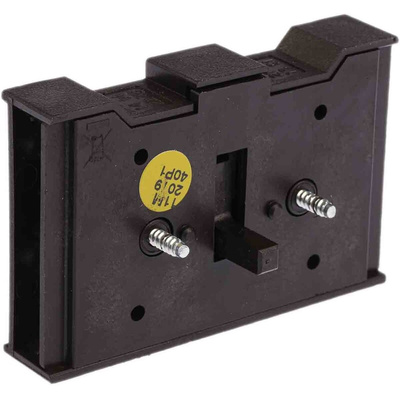

78819020 HI11-P1/P3Z, Eaton Auxiliary Contact, 2 Contact, 1NC + 1NO, Side Mount

Eaton Auxiliary Contact, 10A Contact Current Rating, 7.5mm Cable Stripping Length - 78819020 HI11-P1/P3Z

Help manage power flow through your industrial circuitry with this auxiliary contact from Eaton. It's a handy bit of kit to grab when you want to boost control over switching operations such as motor starting and signalling functions. Screw terminals mean installation takes just a jiffy and you get a vibration-proof connection. For a more complete setup, use the contact in tandem with Eaton's P1 or P3 series disconnectors, such as the three-pole isolator switch (773-0641) or the 25A isolator switch (805-5584).

Features & Benefits

• Inbuilt short-circuit protection prevents damage or downtime caused by rogue surges
• Dependable option with control-circuit reliability of less than 1 failure per 100,000 switching operations
• Performs in temperatures between -25°C and +50°C, so handles harsh environments
• Puts minimal strain on your switch, thanks to a 40g weight

What size is this auxiliary contact?

It has compact dimensions of 41 (L) x 15 (W) x 83mm (H), so it's a space-efficient choice.

How do I mount this device?

You can mount the assembly on either the left or right side of your switch, depending on your setup.
