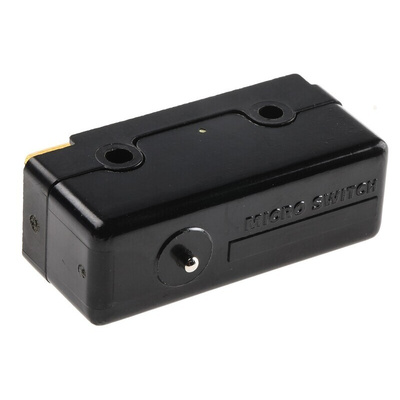

DT-2R-A7, Honeywell Plunger Micro Switch, Screw Terminal, 10 A @ 250 V ac, DPDT, Микропереключатель

Heavy-duty Type (b) Microswitch

Has two separate simultaneously switching SPDT actions in the same housing giving a DPDT switch
The two sets of terminals are separated by a barrier strip
Connection is by means of screws and cup washers
Contact rating; 10A @ 250Vac, 150mA @ 250Vdc

Approvals

UL; CSA

Honeywell Plunger Microswitch, 10A, 125 to 250V AC - DT-2R-A7

Use this plunger microswitch from Honeywell to improve the safety of guard doors in your industrial equipment. It has a sensitive pin plunger actuator that's pressed down when the door is closed and released when it's opened. This instantly triggers the connected equipment to stop, helping to prevent injury to the operator or damage to the machine. The silver contact material is highly conductive and corrosion-resistant for a reliable connection in harsh environments. Thanks to its robust lifespan of up to 3,000,000 mechanical operations, it's a long-lasting choice.

Features & Benefits

• Voltage rating of 125 to 250V AC for use in low-voltage applications
• Wide operating temperature range of -55°C to +85°C for use in demanding environments
• Phenolic housing material for resistance to impact and heat
• Screw connection type for simple and secure installation
• DPDT (double pole double throw) design for controlling up to two independent circuits

Applications

• Food production machinery
• Industrial automation
• Material handling equipment

What's the current rating of this microswitch?

This microswitch has a current rating of 10A, so it's suitable for use in demanding applications.

Approvals

UL; CSA

DT Series Double-Pole Double-Throw Switches Data Sheet

0334397_Product Range Guide_en
