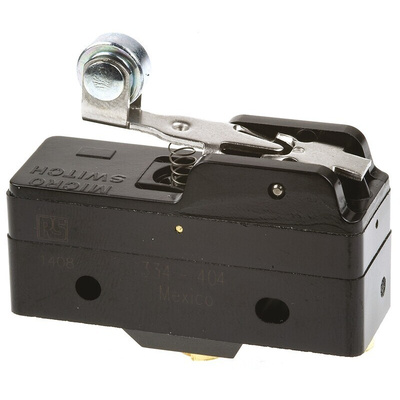

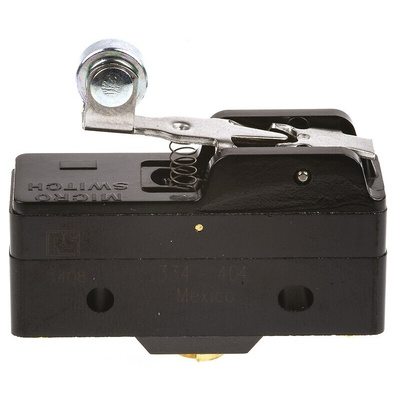

BZ-2RW822-A2, Honeywell Short Roller Lever Micro Switch, Screw Terminal, 15 A @ 125 V ac, SPDT, Микропереключатель

Heavy-duty Type (a) Microswitch

Available with a choice of actuators

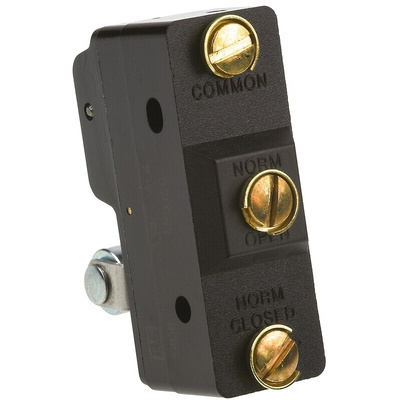

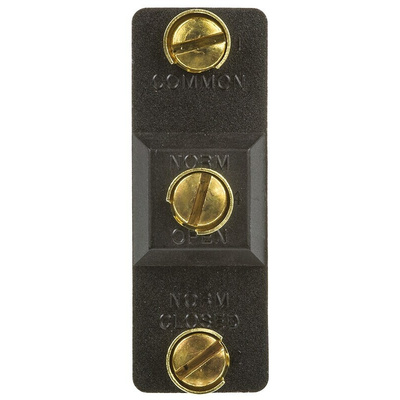

Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A @ 480Vac/28Vdc
Contact material; silver

Approvals

UL; CSA

Honeywell Short Roller Lever Microswitch, SPDT NO/NC, 15 A at 125 V AC - BZ/BA Series - BZ-2RW822-A2

Use this heavy-duty microswitch from Honeywell to activate and deactivate your electrical equipment. It's operated using mechanical force and features a short roller-lever actuator that needs to close its internal contacts in order to complete a circuit. The contacts are made of silver, which offers a high level of electrical conductivity, as well as resistance to oxidation and corrosion. The steel roller is also highly durable, so you can be confident of a long lifespan.

Features and Benefits

• Low operating force of 1.67 N makes this a highly effective switch for sensitive applications
• Compact length of 27.3 mm ensures the switch takes up minimal space in your equipment
• Screw termination method offers secure electrical connections

Applications

• Household appliances
• Safety and control circuits
• Industrial equipment

What is the current rating of this product?

It's rated 15 A at 125 V (AC), so it's suitable for most everyday electrical power supplies.

What safety certifications does this product have?

It conforms to UL (Underwriter Laboratories) and CSA (Canadian Standards Association) standards, indicating that it's safe for both the user and the environment.

Approvals

UL; CSA
