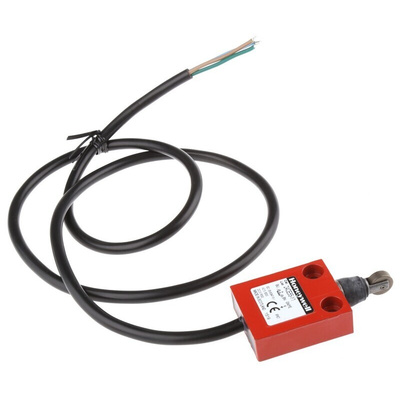

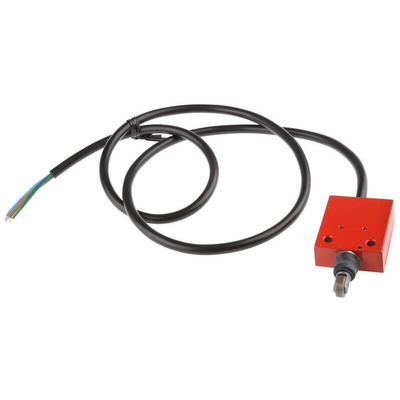

24CE55-Y1, Honeywell 24CE Series Roller Plunger Limit Switch, NC, IP67, SPST, Die Cast Zinc Housing, 240V ac Max, 100mA Max

Honeywell Slow-Action Roller Plunger Limit Switch, 240V AC, 250V DC - 24CE Series - 24CE55-Y1

Choose this slow-action limit switch from Honeywell to automate the process of switching your devices on and off. It requires limited external force as the plunger is moved via a roller actuator. This creates less friction when moving to smoothly open the switch's NC (normally closed) contacts with little effort when triggered. The zinc housing is resistant to corrosion, heat and wear for long-lasting performance. This switch is suitable for use in systems with limited space thanks to its compact dimensions of 49 (length) x 40 (width) x 16mm (depth). It’s supplied with a pre-wired connection cable for quick and easy installation.

Features & Benefits

• Long mechanical lifespan of 10 million cycles for long-term use
• Wide operating temperature range of 0°C to +75°C for use in demanding environments
• IP67 (ingress protection) rating for protection against dust and submersion in 1m of water for up to 30 minutes

Applications

• Gas and oil drilling rigs
• Petrochemical factories
• Valve control monitoring

What's a slow-action switch?

A slow-action switch is a type of switching device that's directly affected by the speed of its external operating system. This means that it reacts only as quickly as the object used to switch it on and off.

Approvals

UL; CSA

Approvals

UL, CSA.

Datasheet

Honeywell Limit Switch Comparison

Product Range Guide - Limit Switches & Machine Safety

Installation Sheet - 24CE55-Y1
