BZ-2RW80-A2, Honeywell Lever Micro Switch, Screw Terminal, 15 A @ 125 V ac, SPDT, IP64, Микропереключатель

Heavy-duty Type (a) Microswitch

Available with a choice of actuators
Connection by screw and cup washer
Panel mounting types should be bush mounted using the supplied fixing nuts
The collapsible roller version operates in one direction only
Optional terminal cover has knockouts to provide a choice of wiring positions
Contact Rating; 15A @ 480Vac/28Vdc
Contact material; silver

Approvals

UL; CSA

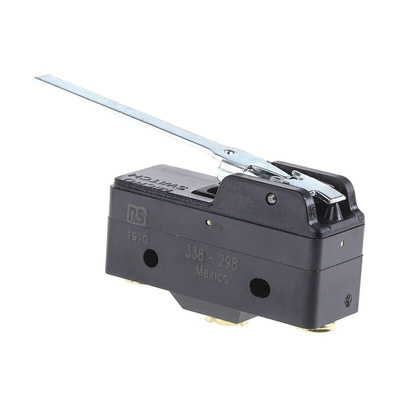

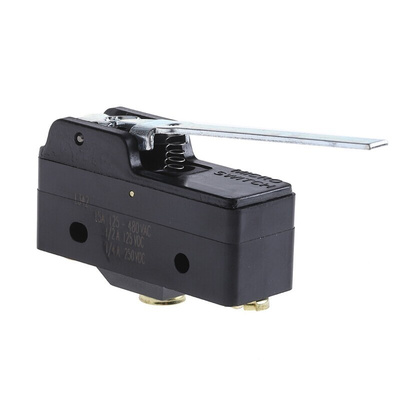

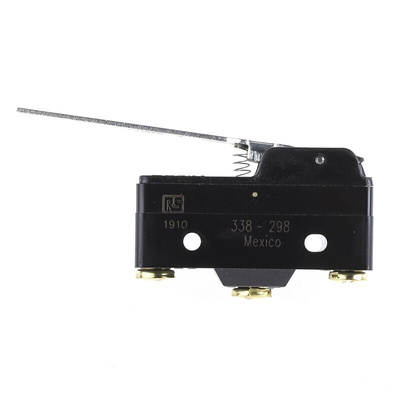

Honeywell SPDT Heavy-Duty Lever Microswitch, 15A, 125V AC - BZ Series - BZ-2RW80-A2

This heavy-duty microswitch from Honeywell provides a high-quality control solution for commercial and industrial machines. The snap-action lever is reliable and long-lasting thanks to the strong, one-piece copper-beryllium alloy spring. This helps the switch achieve an extended mechanical lifespan of 20,000,000 cycles. The microswitch's internal mechanism has a tough, high-grade phenolic resin protective case that's accurately moulded to keep the device compact at 49.3mm in length. This means you can install it in tight spaces. The silver contacts ensure a reliable connection and the screw terminals keep the wiring securely in place.

Features & Benefits

• Comes with fixing nuts and wide mounting hole for easy installation
• Compact 2.5-inch lever to work in tight spaces
• Wide operating temperature range of -55°C +85°C makes it suitable for extreme conditions
• Industry-standard current rating of 15A at 125V AC, so it's compatible with common electrical supply systems

Applications

• Automotive industry
• Medical test equipment and instrumentation
• HVAC (heating, ventilation and air conditioning) systems

Where can I install this microswitch?

This type of lever microswitch is handy for installing on doors and guards to increase workplace safety and security. It's also useful to control lifts, irrigation systems and dental equipment.

Approvals

UL; CSA
