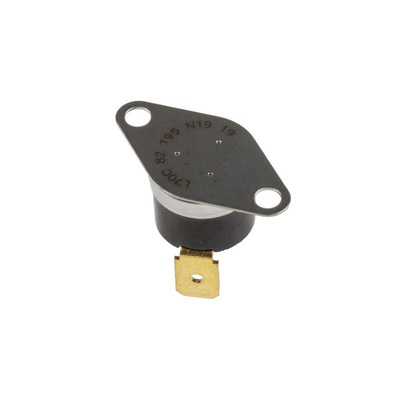

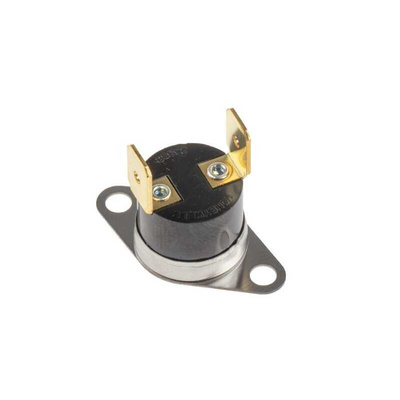

2455R 82-195 L70C, Honeywell Bi-Metallic Thermostat, Opens at +70°C, Closes at +55°C, +150°C Max, SPST NC, Automatic Reset, Through Hole, Термостат

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
•Phenolic body with stainless steel end cap.
•1/4in tab termination.
•Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
•Dielectric strength of 2000 Vac.
•N/C types open on temperature rise.
•N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

Honeywell Bi-Metallic Thermostat, SPST NC, Opens at +70°C - 2455RA Series -2455R 82-195 L70C

This Honeywell bi-metallic thermostat gives exact temperature regulation in 240 V AC supplied circuits. A SPST (single pole, single throw) snap-action switch is normally closed and will open when the temperature rises to +90°C. It automatically resets (closes) at 15°C below the nominated operating temperature (+75°C). Thanks to its dielectric strength of 2000 V AC, this device can be used in a wide range of high-voltage applications without breaking down or failing.

Features and Benefits

• Resilient phenolic resin body with stainless-steel end cap assures a long lifetime
• 15 A-rated contacts can withstand high-current applications
• Quick connecting terminal type for ease of installation
• Wide operating temperature range of 0°C to +150°C for use in demanding industrial conditions

Applications

• Automotive industry
• Major appliances
• Copy machines
• Heat and smoke detection units

How does this bi-metallic thermostat work?

It's operated by a disc made of two metals fused together. These metals react differently to changes in temperature, which causes the disc to bend flex, opening or closing the contacts accordingly and operating the switch.
