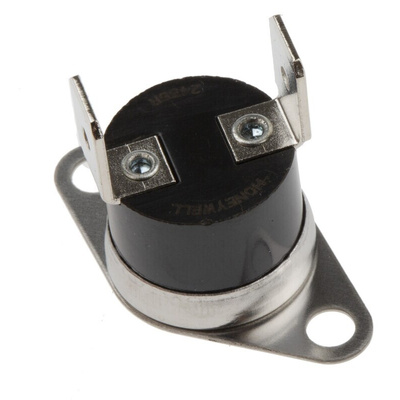

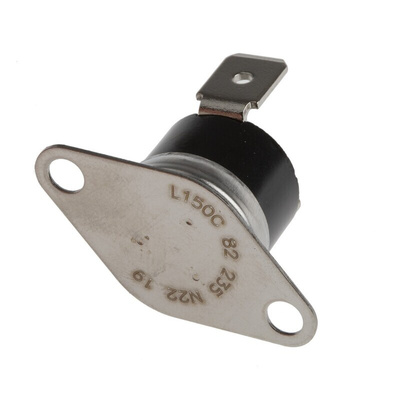

2455R 82-235 L150C, Honeywell Bi-Metallic Thermostat, Opens at +150°C, Closes at 135°C, +150°C Max, NC, Automatic Reset, Through Hole Mount, Термостат

Bi-Metallic Thermostat

Snap action bi-metallic disc operates an SPST contact which is electrically isolated from the mounting bracket.
All types reset when the temperature falls to nominally 15° below operating temperature.
•Phenolic body with stainless steel end cap.
•1/4in tab termination.
•Contacts are rated to 250 Vac 10A with a maximum contact resistance of 50 mΩ.
•Dielectric strength of 2000 Vac.
•N/C types open on temperature rise.
•N/O types close on temperature rise.

Approvals

UL recognised component, CSA Certified

Honeywell Bi-Metallic Thermostat, NC, Opens at +150°C- 2455RA Series -2455R 82-235 L150C

This bi-metallic thermostat from Honeywell is suitable for highly accurate temperature regulation across various commercial applications. The SPST (single pole, single throw) snap-action switch is normally closed and will open when the temperature rises to +150°C. It automatically resets (closes) at 15°C below the nominated operating temperature (+135°C). The unit has a high dielectric strength of 2000 V AC, so it can handle high voltages without failing or breaking down. For safety, the SPST contact is electrically separated from the mounting bracket.

Features and Benefits

• Durable body of phenolic resin with stainless-steel end caps for corrosion resistance
• 1/4-inch soldered tabs are compatible with standardised connections
• Combination of two metals offers enhanced response to temperature changes
• 10 A-rated contacts to tolerate high current scenarios
• Wide operating temperature range of 0°C to +150°C for versatile use

Applications

• Automotive industry
• Commercial appliances
• Heat and smoke detectors

Does this product meet any global manufacturing standards?

Thermostats in Honeywell’s high-spec 2455R series are designed with safety and sustainability as priorities. This robust unit has approvals from UL (Underwriters' Laboratories), CSA (Canadian Standards Association) and VDE (Verband der Elektrotechnik).
