RSF43Y050QF, Sensata / Cynergy3 RSF40 Series Horizontal Nylon Float Switch, Float, 500mm Cable, NO/NC, 240V ac Max, 120V dc Max

Cynergy3 Horizontal Float Switches

Cynergy3 offers wide range of horizontal switches which are WRAS approved and have low-cost compact design. These horizontal float switches consist of a reed switch and a pivoted actuator magnet and can be used for N/O or N/C operation. The switch action can be reversed by mounting the float switch with the float able to move upwards away from the body instead of downwards.

WRAS approval explained

WRAS is the standard against waste, misuse, undue consumption or contamination of the water supply and must have an appropriate quality and standard.

What materials can you choose from?

• Nylon
• Polypropylene
• Polypropylene Sulfide (PPS)

Features and Benefits

• Operating temperature: -10 °C to +120 °C
• N/O or N/C Switch output
• Switch action may be reversed by rotating the switch through 180º
• Choice of gasket materials: Silicone, Nitrile, Viton or combination of Silicone & Nitrile
• Flying Lead
• M12 plug connection
• Internal & external fitting inside a tank
• UL recognised

Typical Applications

These Cynergy3 Horizontal Switches are most likely to be used in vending machines, commercial washing machines and evaporator units.

Note

Suitable for signal switching and for use with transistorised input/low power, suppressed coil miniature relays. Not suited for any inductive or inrush (e.g. filament lamps) loads.

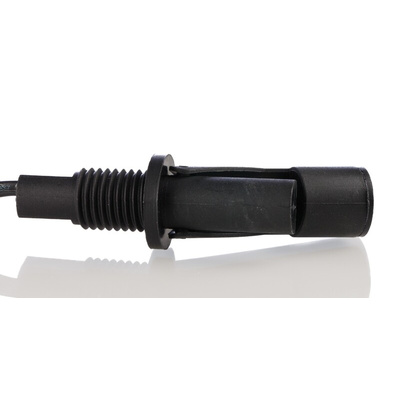

Sensata Cynergy3 Horizontal Internal Float Switch, NO/NC, 500 mm - RSF40 Series - RSF43Y050QF

Ensure that the fluid level in your tank is always within a specified range using this internal float switch from Sensata Cynergy3. It's a simple and reliable way to prevent overfilling in your systems. For versatility, the unit can be used with most liquids, including solvents, greases and oils. By using a switch like this, you can prevent the loss of dangerous or valuable fluids and minimise maintenance downtime.

Features and Benefits

• Compact switch length of 88 mm suits applications where space is limited
• Lightweight nylon body with excellent abrasion resistance
• Wide operating temperature range of -20°C to +75°C for use in harsh industrial environments

What wiring options does this float switch accommodate?

You can use this switch for either NO (normally open) or NC (normally closed) operation. When it's in the NO position, the float switch will close and activate the electricity to the pump as the liquid rises to a pre-set level. When in the NC position, it opens and cuts off electricity when the liquid rises to a pre-set level.
