Schneider Electric Push Button Pendant Station - XACA Series

Created and designed for predominantly standard or medium-duty control circuit applications, Schneider Electrics push-button pendant station provide a covering case for the internal push button. The enclosures are made up from a rugged, double insulated thermoplastic material. This unit is a simple yet effective mechanical switch which is commonly used to control the hoist and lowering function within a machine or device. Strategically designed for easy handling and operation, even when the user is wearing heavy work gloves.

Common Applications of a Push Button Pendants Station

Due to the nature of the component and its capability of controlling certain pieces of machinery, users will commonly find push button pendant stations being used within an industrial environment for machines such as cranes that hoist overhead, fixed hoists, beam hoists and similar types of machinery.

• Brought to you complete and pre-assembled
• Double insulated
• Shock and corrosive resistant
• Ease of operation
• Right, left, hoist and lower functions

Routine Maintenance

• Check that the screws on the rear cover are properly tightened
• Check the condition and secureness regularly
• Try to use the genuine replacement parts for any your control stations when needed

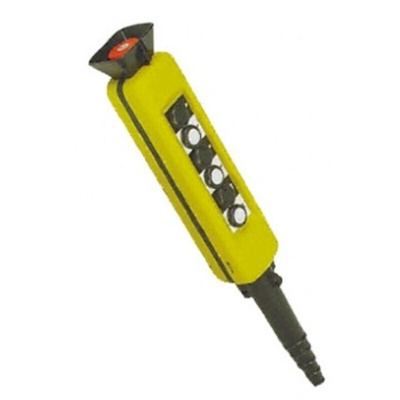

Schneider Electric Push Button Pendant Station - XACA06SPEC0280

Forming part of Schneider Electrics Harmony XAC range, these pendant features six push-buttons and one emergency stop button.

Features & Benefits

• Aesthetically pleasing, finished with bright yellow colour, making it easy to locate
• Mechanically durable up to 1000000 cycles
• The unit features an ingress protection rating of IP65, this means that the pendant control station is rated as dust tight and is protected against water projected from a nozzle
• Complete and ready to use
• The connection terminals are screw clamp terminals, 1 x 2.5 mm² with or without cable end and screw clamp terminals, 2 x 1.5 mm² with or without cable end
• The ambient temperature to operate this type of controller is -25…70 °C
• 10 A conventional enclosed thermal current
• Toxic heavy metal and mercury-free
