E32TC200, Omron Plastic Fibre Optic Sensor 1000 (High Resolution Mode) mm, 200 (Super High Speed Mode) mm, 500 (High Speed Mode), Волоконно-оптический датчик

0340960
Номер производителя: E32TC200Производитель: Omron
Цена за шт.
18096.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

E32 Series Fibre Optic Sensing Heads

Various formats for a wide range of applications. IP67 (IP50 E32-L25)
All fibres are 2m long black PE.
Permissable bend radius 25mm min.

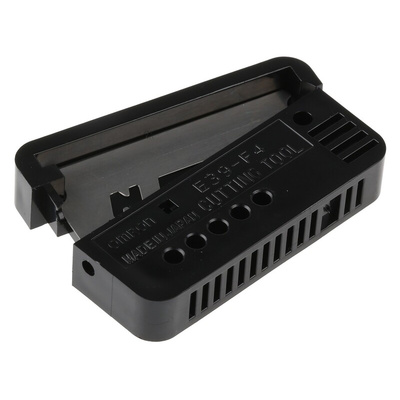

Trim to length with the cutting tool supplied for insertion into amplifier clamping apertures
Operating temperature range -40° to +70° C
Wafer-mapping ultraslim through-beam fiber

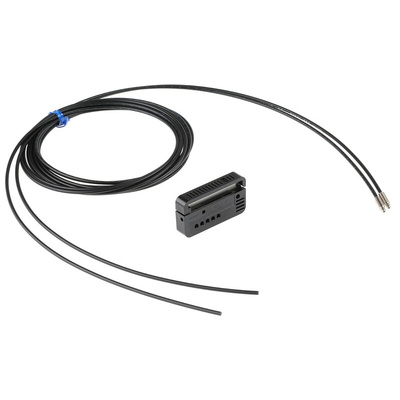

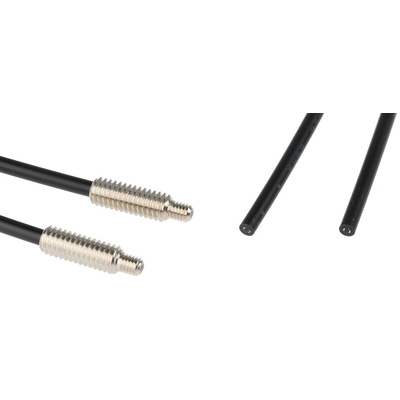

OMRON Fibre Optic Sensor, M4 Sensor Head, Through-Beam Sensing - E32 Series - E32TC200

With this fibre optic sensor from OMRON on duty, no object goes unseen. Its small M4 head size makes it just what you need for detecting miniature workpieces, such as components in plastic manufacturing plants. Thanks to its through-beam sensing method, you can rest assured of its accuracy over an extended detection range of 2.3m. A cable length of 2m gives you room to move during setup. For flexibility, the cable has a bending radius of 25mm, so you can turn it around corners or fit it into constricted spaces.

Features & Benefits

• IP67-rated housing is dust-tight and protected against immersion in up to 1.5m of water for 30 minutes
• PE jacket resists abrasion and wear to deliver an extended lifespan in harsh industrial settings
• Does its job without a glitch in a broad operating temperature range between -40°C and +70°C

Applications

• Consumer electronics
• FMCG manufacturing
• Automotive industry
• Food and beverage packaging

Is this fibre optic sensor insulated?

Yes, the product's PE cable jacket offers insulation to minimise the risk of electric shocks.

Техническая спецификация
pdfDatasheet
pdfCatalogue - Fiber-Optic Sensors
Волоконно-оптический тип:
Пластик
Встречающиеся стандарты:
CE
Диапазон обнаружения:
1000 (High Resolution Mode) mm, 200 (Super High Speed Mode) mm, 500 (High Speed Mode) mm, 760 (Standard Mode) mm
Длина:
14мм
Источник света:
Красный светодиод
Материал корпуса:
PE
Напряжение питания:
12 → 24 В пост. тока
Рабочая температура - максимальная:
+70°C
Рабочая температура - минимальная:
-40°C
Размеры:
14 x M4 мм
Степень защиты IP:
IP67
Тип клеммы:
Проволочный вывод
Электрическое соединение:
Кабель
