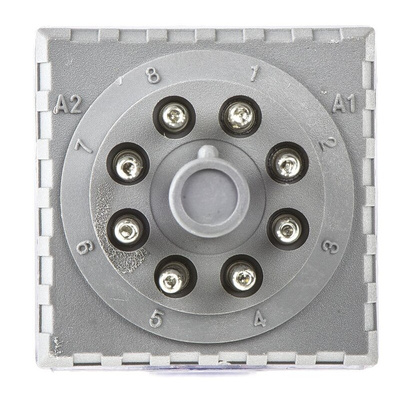

10A 8 & 11 Pin Plug-In Relays
Dual function, colour coded test button push to test or lift to latch
Mechanical flag indicator and coil LED as standard
Operating Temperature Range -20 to +60°C
Contact material silver-nickel (AgNi)
H71, W35, D35mm

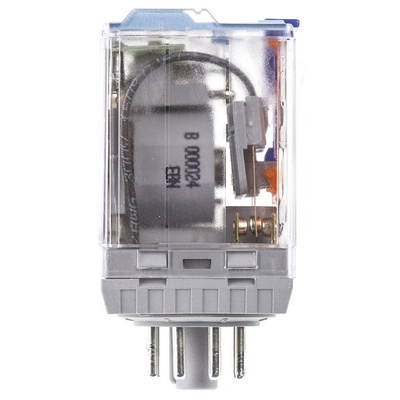

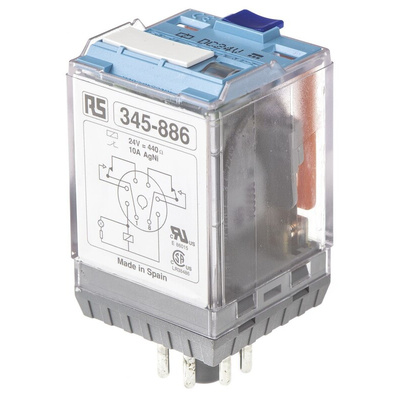

RELECO Non Latching Relay
The RELECO MRC series 2-pole plug-in mount non-latching relay has a contact configuration of DPDT. It is actuated with a 24VDC coil and 10A switching current. This relay has a test button, LED indicator and mechanical flag indicator. The test button is colour coded and dual function, push to test or lift to latch.
Features and Benefits
Coil power is 2.2W
Coil resistance is 433ohm
Contact material silver-nickel (AgNi)
Robust industrial terminal blades
Operating temperature ranges between -20°C and 60°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP40 rated
Approvals
7777
