C3-A30X / DC 24 V, Releco Plug In Power Relay, 24V dc Coil, 10A Switching Current, 3PDT, Реле

10A Plug-In Relays (8 or 11 Pin)

Dual function, colour coded test button push to test or lift to latch
Mechanical flag indicator and coil LED as standard
Operating Temperature Range -20 to +60°C
Contact material silver-nickel (AgNi)
H71, W35, D35mm

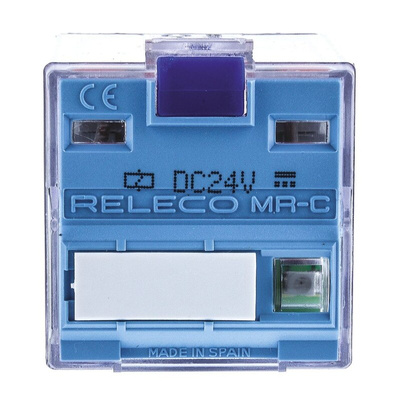

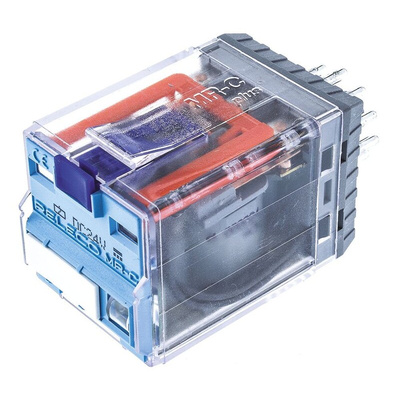

RELECO Non Latching Relay

The RELECO MRC series 3-pole plug-in mount non-latching relay has a contact configuration of 3PDT. It is actuated with a 24VDC coil and 10A switching current. This relay has a test button, LED indicator and mechanical flag indicator. The test button is colour coded and dual function, push to test or lift to latch.

Features and Benefits

Coil power is 1.3W
Coil resistance is 443ohm
Operating temperature ranges between -20°C and 60°C
Contact material silver-nickel (AgNi)

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP40 rated
