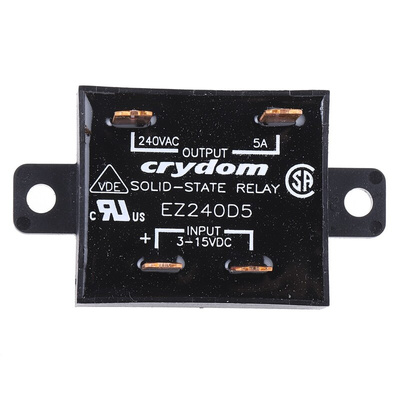

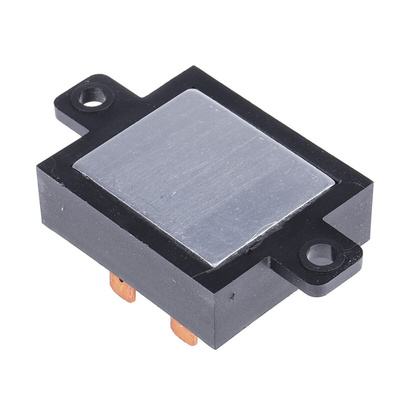

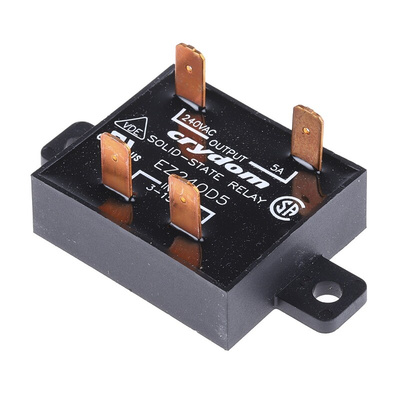

EZ240D5, Sensata / Crydom EZ Series Solid State Relay, 5 A rms Load, Panel Mount, 280 V Load, 15 V dc Control, Реле

Sensata | Crydom Solid-State Relay, SCR Output Type, 24 to 280V AC Operating Voltage Range - EZ Series - EZ240D5

When the job calls for stable isolated switching from a control circuit to your load circuit, choose this solid-state relay from Sensata | Crydom. Its SCR output makes it a practical pick for secure switchovers in high-power applications such as conveyor systems and compressors. The unit's dielectric strength of 4000Vrms means it's safely insulated, keeping you and your equipment safe from electrical hazards. Thanks to this relay's zero-cross switching function, it switches on with little power loss or electrical noise for operation without a hitch.

Features & Benefits

• Thermally conductive epoxy encapsulation for effective heat dissipation
• 1/4-inch Faston terminals let you make robust electrical connections in a jiffy
• Compact size of 13.9 (H) x 43.9 (L) x 38.1mm (D) to maximise space on your PCB
• Wide operating voltage range of 24 to 280V AC for compatibility with low-power systems

What temperatures can I use this SSR in?

This relay has a wide operating temperature range of -40°C to +80°C, so it's a safe bet for use in harsh environments.

Approvals

UL; CSA; VDE

Crydom Solid State Relay and Accessories

CSA 0816890000

VDE 10139

UL E116950

UL REC FOR CANADA E116950
