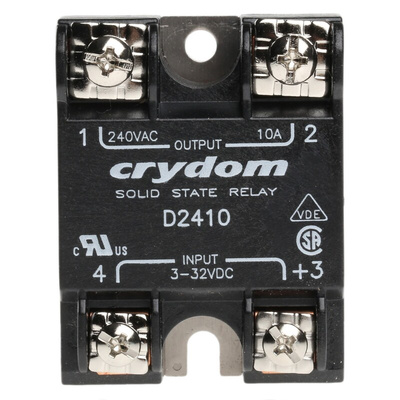

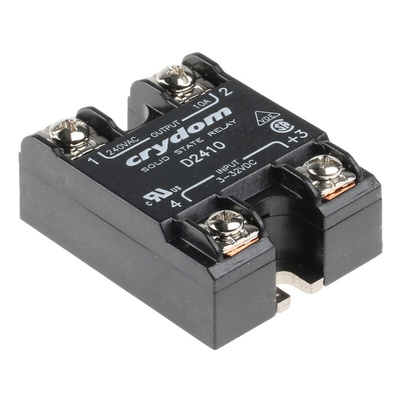

D2410, Sensata / Crydom Solid State Relay, 10 A rms Load, Surface Mount, 280 V rms Load, 32 V Control, Реле

Crydom Series 1 Solid State Relays

Crydom Series 1 range of solid state relays offer a wide range of ratings from 10 A to 125 A at 24 V ac to 280 V ac. Crydom has incorporated many features within this particular range of panel mount solid state relays including AC or DC control and SCR output for heavy industrial loads. Both zero-crossing (resistive loads) and random-fire (inductive loads) output versions are available.

Features and Benefits

600 V blocking capacity
SCR Output for heavy industrial loads
Internal snubber circuitry
Filter, cover and thermal pads available
Terminal Type Screw; Saddle Clamp
Input-output Capacitance: 8 pF
Isolation Voltage 4 kVrms
Dimensions: H22.9 x D58.4 x W45.7mm

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL recognised component for Canada and US, VDE

Sensata | Crydom Solid-State Relay, 3 to 32V DC Control Voltage Range, 10A Rated Load Current - D2410

Switch the electrical supply to your equipment on and off using this solid-state relay from Sensata | Crydom. It has an MTBF of over 11 million hours, so it's a long-lasting component. For safety in the event of a fire, the unit features a flame-retardant enclosure. It's protected against EMI, so there's minimal chance of crosstalk from nearby electronic components. As it has a broad operating voltage range of 24 to 280V AC, it's suitable for use in a wide variety of low-voltage applications. Choose a relay like this one for industrial motor control or robotics applications.

Features & Benefits

• Contains no moving parts for reduced wear and minimal maintenance

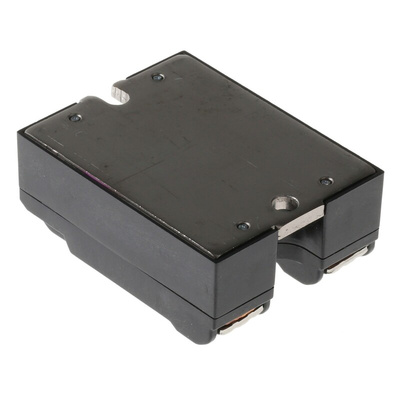

• Robust aluminium baseplate is resistant to impact and corrosion
• Anti-rotation barriers ensure the relay is securely mounted
• Broad operating temperature range between -40°C and +80°C for use in demanding conditions

What are the minimum power requirements for this relay?

This solid state relay needs a minimal turn-on voltage of 3V DC and a minimum input current of 7mA, making it suitable for low-power setups.

Approvals

UL; CSA; VDE

Crydom Solid State Relay and Accessories

VDE 10143

Series1 240VAC Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - Panel Mount Solid State Relays

Line Drawing - S1 Series
