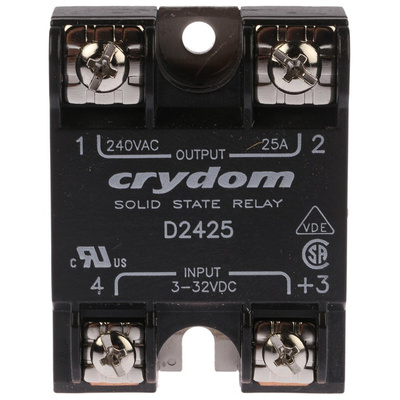

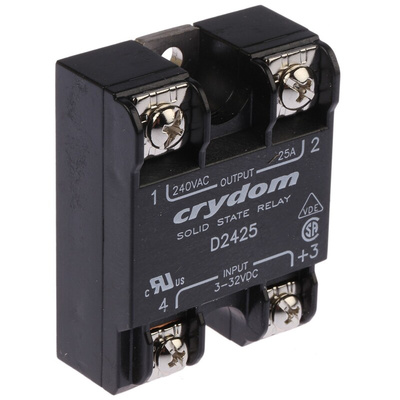

D2425, Sensata / Crydom Solid State Relay, 25 A rms Load, Surface Mount, 280 V rms Load, 32 V Control, Реле

Crydom Series 1 Solid State Relays

Crydom Series 1 range of solid state relays offer a wide range of ratings from 10 A to 125 A at 24 V ac to 280 V ac. Crydom has incorporated many features within this particular range of panel mount solid state relays including AC or DC control and SCR output for heavy industrial loads. Both zero-crossing (resistive loads) and random-fire (inductive loads) output versions are available.

Features and Benefits

600 V blocking capacity
SCR Output for heavy industrial loads
Internal snubber circuitry
Filter, cover and thermal pads available
Terminal Type Screw; Saddle Clamp
Input-output Capacitance: 8 pF
Isolation Voltage 4 kVrms
Dimensions: H22.9 x D58.4 x W45.7mm

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL recognised component for Canada and US, VDE

Sensata | Crydom Solid-State Relay, 25A Rated Load Current, 24 to 280V AC Operating Voltage - D2425

Use this solid-state relay from Sensata | Crydom to control the power supply to your industrial equipment. It's electromagnetically compatible with other electronic devices to reduce the chance of crosstalk and interference. As the unit has no moving parts, there's minimal risk of wear to ensure long-lasting performance. A component like this one is suitable for switching power to industrial robotics setups, gas meters and IC equipment.

Features & Benefits

• Flame-retardant housing for safety in the event of a fire
• Aluminium baseplate for resistance to corrosion and impact
• Wide operating temperature range of -40°C to +80°C for use in demanding environments
• MTBF of over 11 million hours for long-lasting performance

What's the operating voltage of this relay?

This relay has a wide operating voltage range of 24 to 280V AC, making it a good choice for use in low-power systems.

Does this relay have contacts?

As this is a solid-state relay, it has no contacts. This reduces cleaning needs and eliminates the chance of electrical arcs causing damage to your equipment.

Approvals

UL; CSA; VDE

Crydom Solid State Relay and Accessories

VDE 10143

Series1 240VAC Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Installation Sheet - Panel Mount Solid State Relays

Line Drawing - S1 Series
