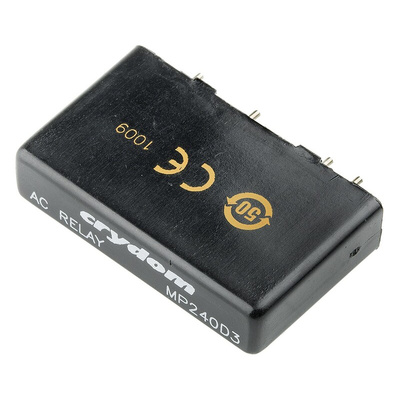

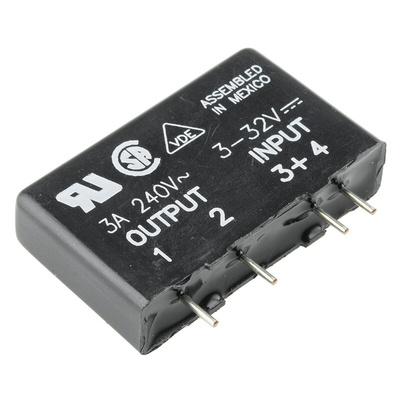

MP240D3, Sensata / Crydom DRA1 Series Solid State Relay, 3 A Load, PCB Mount, 280 V rms Load, 32 V dc Control, Реле

Series MP 3 - 4A, 240Vac, ac Output SIL

High package density
Compatible with 5, 12 & 24V logic systems
Isolation voltage 4000Vrms
Dimensions: H31.75mm x W10.2mm x D43.1mm
Operating temperature range: -40 to +80°C

Approvals

UL recognised component for Canada and US, VDE

Sensata | Crydom Solid-State Relay, DIN Rail Mounting, Zero-Crossing Switch Type - DRA1 Series - MP240D3

Need a reliable switching device for your industrial control equipment? Use this solid-state relay from Sensata | Crydom. As there are no moving parts, there's minimal risk of mechanical wear, helping to ensure a long service life. The relay is designed to fit on a standard 35mm DIN rail, so it's simple to install without the need for specialised tools. It has a zero-crossing switch type to safely handle resistive loads with minimal noise. This SSR is suitable for use in lighting and HVAC applications.

• Cage screw terminals for a simple and secure wire connection
• MOSFET output device to ensure a long and reliable service life
• Encapsulated in thermally conductive epoxy to minimise damage from impact and heat
• Wide operating temperature range between -40°C and +80°C for use in demanding environments
• Labelled input and output pins to reduce the risk of connectivity errors

What's the operating voltage of this SSR?

This SSR has an operating voltage range between 24 and 280V AC for compatibility with common control applications.

Approvals

UL / C-UL recognised; VDE

Caution
type":"Caution",

Derating will limit the maximum load current at temperatures above 25°C

CSA 0816890000

UL E116950

UL REC FOR CANADA E116950

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Datasheet - MPDCD3
