172-26, Teledyne PCB Mount RF Relay, 26.5V dc Coil, DPDT, Реле

Teledyne RF Relay

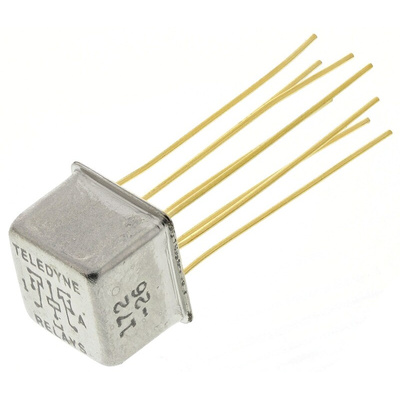

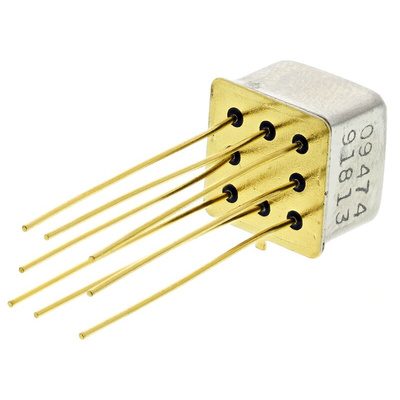

The Teledyne Centigrid® RF relay is an ultra-miniature, hermetically sealed and DPDT armature device. It has a coil voltage rating of 26.5VDC. It has a low profile height and grid spaced terminals that prevent the need for spreader pads and make them suitable for use when close PCB spacing is required. The series 172 relay has an internal discrete silicon diode for coil transient suppression.

Features and Benefits

Advanced cleaning techniques provide maximum assurance of internal cleanliness
All welded construction
Coil resistance is 1600ohm
Maximum DC voltage rating is 32VDC
High force/mass ratios for resistance to shock and vibration
Low insertion loss - isolation and intercontact capacitance of 0.4pF
Excellent switching performance from DC to 2GHz
Precious metal alloy contact material with gold plating ensures excellent high current and dry circuit switching capabilities
Unique uni-frame design provides high magnetic efficiency and mechanical rigidity
Operating temperature ranges between -55°C and 85°C

Applications

Attenuators
Mobile communication
Telecommunication
Test instruments

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
