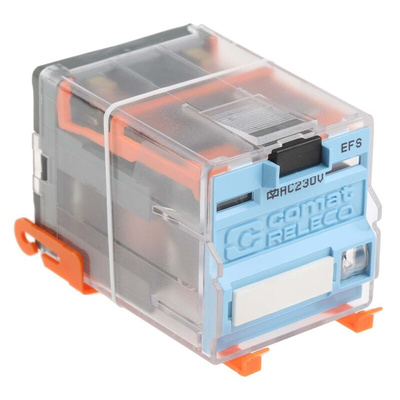

C3-R20N/AC 230V, Releco Plug In Latching Power Relay, 230V ac Coil, 10A Switching Current, DPDT, Реле

Releco Remanence Relay

The Releco remanence relay has two changeover contacts and switching current rating of 10A. It is an AC powered plug-in type latching relay with bi-stable switching. This means that the current switching state is retained, irrespective of the excitation. The contacts can be switched OFF by pulsing the reset input. It has a test button that is colour coded and has dual functions like a push to test or lift to latch. There is a removable marking label fitted to each relay. Its meticulous design makes it particularly suitable for industrial applications and installation engineering.

Features and Benefits

230VAC supply rating coil
11-terminal multipole connector according to IEC 67
Contact material is silver-nickel (AgNi)
DPCO contact configuration
Mechanical flag indicator as standard
Operating temperature ranging between -40°C and 60°C
Standard relay 35 x 35mm with flat blade connectors

Applications

Anti-condensation equipment
Car washing equipment
Coffee machines
Commercial cooking equipment
Driers and pumps
HVAC
Industrial cleaning equipment
Refrigeration

Certifications

CCC certified
CE certified
cRUus certified
cULus certified
EAC certified
IEC/EN 60947
IEC/EN 61810
LROS certified
