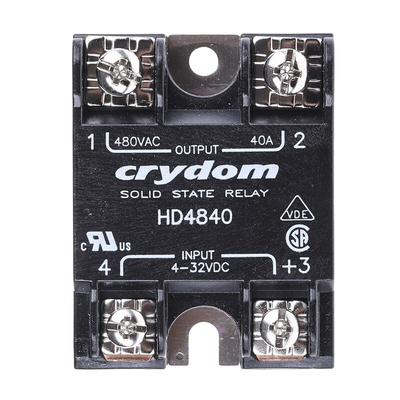

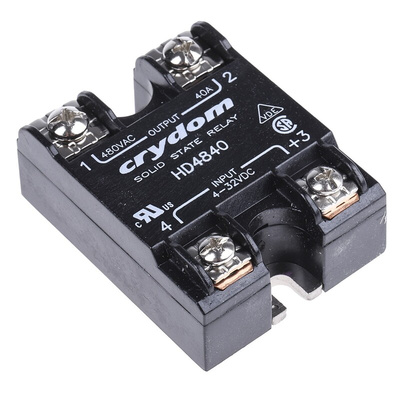

HD4840, Sensata / Crydom Solid State Relay, 40 A Load, Panel Mount, 530 V Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, 40mA to 40A Load Current Range, SCR Output - HD4840

Make contact switching an open-and-shut case with this solid-state relay from Sensata | Crydom. It reliably makes or breaks a circuit and has no moving parts, so there's minimal chance of breakdowns and wear. Its static operation also means it's a quiet workmate, as there's less acoustical noise. The unit provides isolation between two circuits, keeping overcurrent and voltage surges safely in check to prevent damage to equipment. An SSR like this one is just the switching component you need in demanding motion control, lighting or heating applications.

Features & Benefits

• Wide operating temperature range between -40°C and +80°C for use in demanding environments
• Encapsulated in thermally conductive epoxy to allow for effective heat dissipation
• Opening and closing time of half a cycle for almost instant switching action
• Wide operating voltage range between 48 and 530V to meet the demands of your system

How big is this relay?

This relay has compact dimensions of 45.7 (L) x 22.9 (W) x 58.4mm (H), so it needs minimal space on your panel.

Approvals

UL; C-UL recognised; VDE
