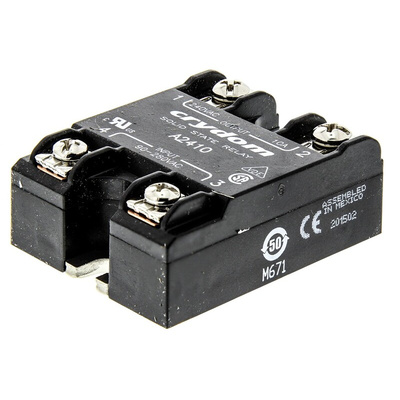

A2410, Sensata / Crydom Series 1 Series Solid State Relay, 10 A rms Load, Surface Mount, 280 V rms Load, 280 V rms Control, Реле

Sensata | Crydom Solid-State Relay, SCR Output, 4000Vrms Dielectric Strength - Series 1 - A2410

When sure-fire switching is top of your list, put your faith in this solid-state relay from Sensata | Crydom. As it has no moving parts, you can count on quick switching with minimal risk of wear for long-lasting performance. Fast turn-on and turn-off times of half a cycle mean you get lightning-quick results. Thanks to the SCR output that offers easy switching control for high-power, high-voltage loads, this SSR is a great shout for applications such as electrical regulation and motor starting.

Features & Benefits

• Dielectric strength of 4000Vrms means it's safely insulated
• MTBF of over 1300 years at +40°C means it's built to last
• Pre-assembled SEMS screw and washer make installation a piece of cake
• Wide operating temperature range between -40°C and +80°C for use in harsh settings
• Flame-retardant housing for safety in the event of a fire

Will this SSR come loose?

This SSR features anti-rotation barriers that prevent the unit from shifting when mounted onto your PCB. This makes it a safe bet for industrial workplaces where there's a high level of vibration from moving machinery.

Approvals

UL; CSA; VDE

Crydom Solid State Relay and Accessories

VDE 10143

Series1 240VAC Datasheet

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Instruction Sheet - AC OUTPUT
