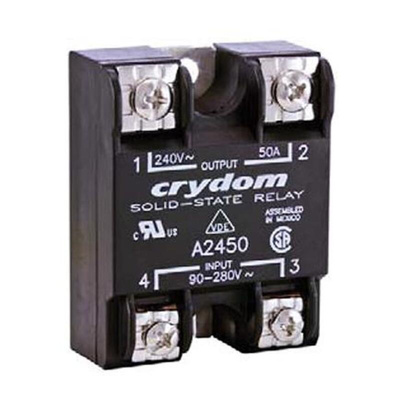

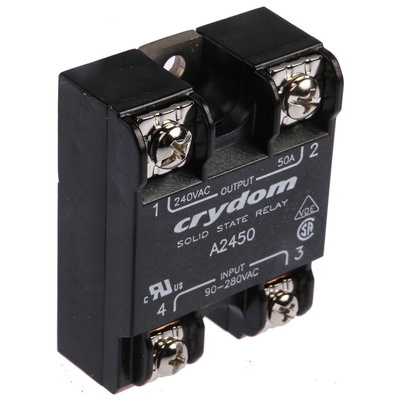

A2450, Sensata / Crydom 1 Series Solid State Relay, 50 A rms Load, Surface Mount, 280 V rms Load, 280 V rms Control, Реле

Crydom Series 1 Solid State Relays

Crydom Series 1 range of solid state relays offer a wide range of ratings from 10 A to 125 A at 24 V ac to 280 V ac. Crydom has incorporated many features within this particular range of panel mount solid state relays including AC or DC control and SCR output for heavy industrial loads. Both zero-crossing (resistive loads) and random-fire (inductive loads) output versions are available.

Features and Benefits

600 V blocking capacity
SCR Output for heavy industrial loads
Internal snubber circuitry
Filter, cover and thermal pads available
Terminal Type Screw; Saddle Clamp
Input-output Capacitance: 8 pF
Isolation Voltage 4 kVrms
Dimensions: H22.9 x D58.4 x W45.7mm

Note

Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet

Caution

Derating will limit the maximum load current at temperatures above 25 °C

Approvals

UL recognised component for Canada and US, VDE

Sensata | Crydom Solid-State Relay, 50A Current Rating, Screw Terminals - Series 1 Series - A2450

Use this solid-state relay from Sensata | Crydom to turn power on and off in your electric circuits. As it has no physical contacts, this unit transmits the electrical signals in an optical form. This helps to minimise the risk of wear, giving you an extended service life. For durability, anti-rotation barriers in the housing help prevent misalignment in the event of heavy vibrations. Thanks to its maximum turn-on time of 20ms and turn-off time of 30ms, you can use this SSR with devices that need rapid power switching. It's commonly used in lighting and heating applications.

• Broad operating temperature range between -40°C and +80°C to withstand use in harsh environments
• Compact dimensions of 57.3 (H) x 23.3 (W) x 44.5mm (D) to maximise space in your setup

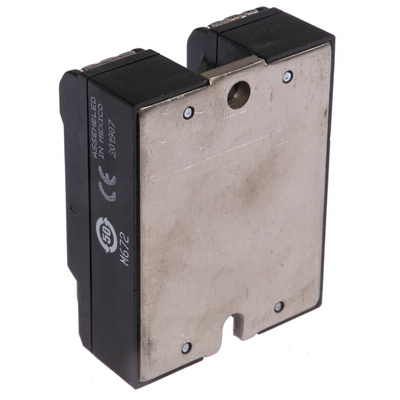

• Durable aluminium baseplate resists impact and corrosion
• Load voltage range between 24 and 280V AC for use in low-voltage systems

What's the current rating of this SSR?

This SSR has a current rating of 50A for use in heavy-duty applications.

Approvals

UL; CSA; VDE
