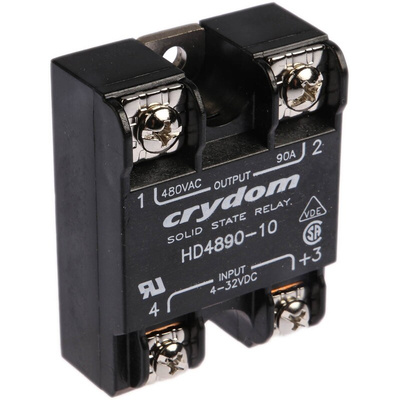

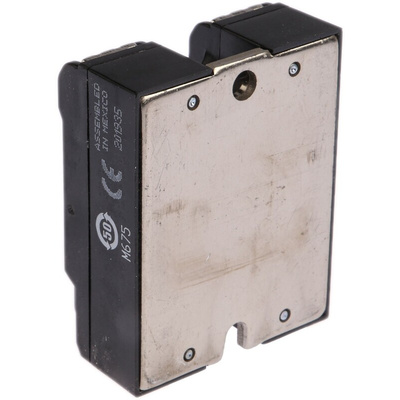

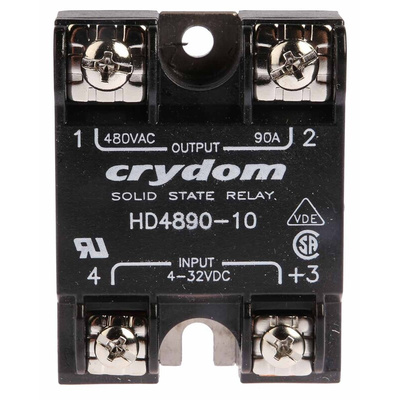

HD4890-10, Sensata / Crydom HD SERIES Series Solid State Relay, 90 A Load, Panel Mount, 530 V Load, 32 V Control, Реле

Sensata | Crydom Solid-State Relay, 24 to 8AWG Wire Size Range, Anti-Rotation Barriers - HD Series - HD4890-10

Looking for lightning-fast switching? It's a done deal with this solid-state relay from Sensata | Crydom. As it switches with no moving parts, you get on-off changeovers in less than 30ms. This technology also means there's minimal risk of wear for a longer service life. Thanks to the product's anti-rotation barriers, you can trust it to stay firmly in place when mounted onto a panel. It's a great shout for demanding industrial applications involving vibrating machinery, such as wind turbines or production lines in the food and beverage sector.

• SCR output for use with high-power machinery
• MTBF of 11,641,553 hours for long-lasting performance
• Flame-retardant housing for safety in the event of a fire
• IP20 rating means it's touch-safe and protected against objects larger than 12mm in size
• Accepts wire sizes between 24 and 8AWG for versatility

What temperatures can I use this SSR in?

This product has a wide operating temperature range of -40°C to +80°C, so you can trust it's a safe bet for harsh industrial settings.

Approvals

UL; C-UL recognised; VDE

Instantaneous Switching

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

VDE 10143

Declaration of Conformity 2014/35/EU

CE Declaration of Conformity (2014/35/EU, 2015/863/EU)

Datasheet - HD48

Line Drawing - HD48 Series
