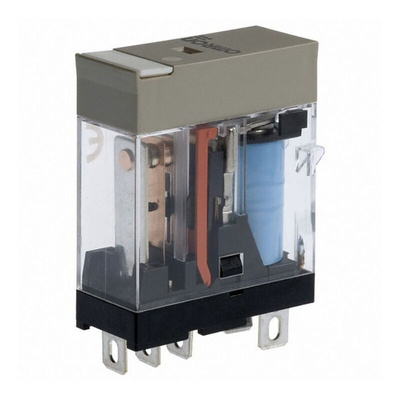

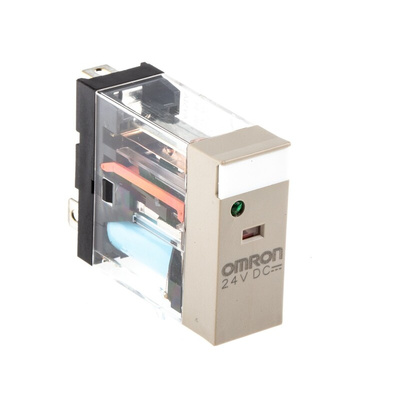

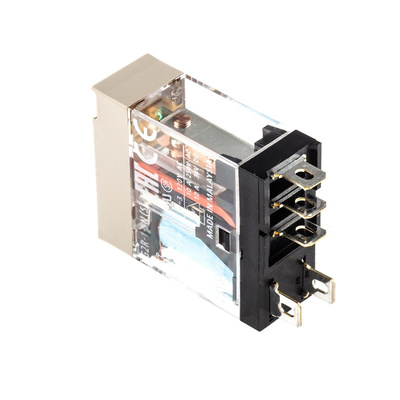

G2R-1-SN DC24(S), Omron Plug In Power Relay, 24V dc Coil, 10A Switching Current, SPDT, Реле

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

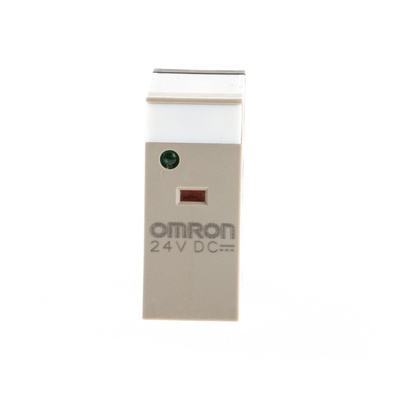

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 10A Maximum Switching Current, LED Indicator - G2R-1 Series - G2R-1-SN 24DC(S)

Want to keep your electrical circuits running smoothly? Pick up this power relay from OMRON. When mounted into a push-in socket (such as 111-3066), it saves time and reduces your wiring needs by up to 60%. Silver alloy contacts stand their ground against corrosion and impact, so you can rest assured of long-lasting use. LED and mechanical operation indicators display its status, making troubleshooting a walk in the park. You can use this versatile relay in equipment like vending machines and packaging systems.

Features & Benefits

• Insulation resistance of 1000MΩ, so it's finger-safe and you're protected from electric shocks
• Cadmium-free and lead-free material so it won't release toxic fumes
• Plug-in termination type for easy and direct installation without the need for complex tools
• Safe to use in hazardous conditions, thanks to an operating temperature range between -40°C and +70°C

Applications

• Pharmaceutical industry
• Oil refineries
• Industrial automation

What's a non-latching relay?

A non-latching relay, like this device, reverts to its initial resting position when power is turned off. This makes it a reliable choice for machine functions with short time delays.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ

CSA LR31928

UL E41643

VDE 40015012
