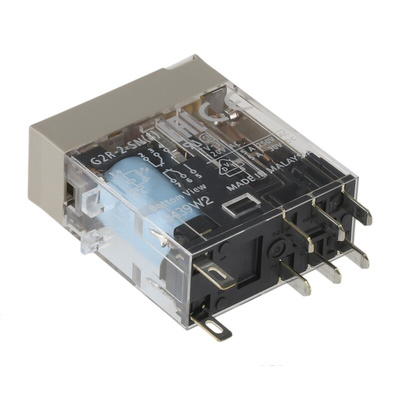

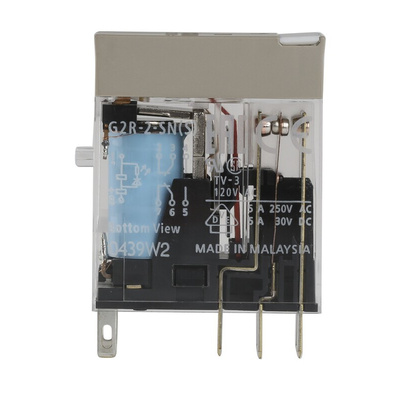

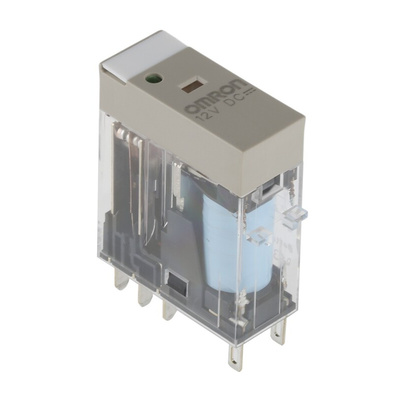

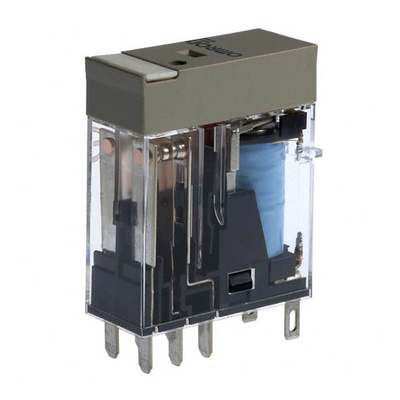

G2R-2-SN DC12(S), Omron Plug In Power Relay, 12V dc Coil, 5A Switching Current, DPDT, Реле

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 530mW Coil Power, 275Ω Coil Resistance - G2R-2 Series - G2R-2-SN DC12(S)

Add this power relay from OMRON to your setup to open and close circuits in a flash. A 5A current switching capacity makes this device an ideal choice for low-power jobs – put it in charge of automated tasks such as motor, conveyor belt and pump operations. The unit's 2-pole design means it's useful for managing a pair of circuits working in tandem, which simplifies your setup while boosting productivity. Installation can be done in a flash, as it plugs directly into a compatible socket (such as 111-3067).

Features & Benefits

• Silver alloy contacts efficiently conduct electricity and resist corrosion
• LED indicator displays the unit's operating status for monitoring at a glance
• Mechanical life of 20 million cycles means it delivers dependable long-term performance

Applications

• HVAC systems
• Lighting control
• Medical equipment

What size is this power relay?

The unit has compact dimensions of 29 (L) x 13 (D) x 28mm (H) to take up minimal space in a busy setup.

Can I use this device in challenging temperatures?

Yes, it works without a hitch in a broad temperature range between -40°C and +70°C, so it's ideal for use in demanding environments.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ

CSA LR31928

UL E41643

VDE 40015012
