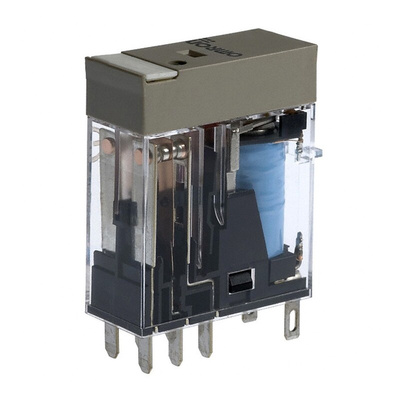

G2R-2-SN DC24(S), Omron Plug In Power Relay, 24V dc Coil, 5A Switching Current, DPDT, Реле

G2RS Series Non-Latching Relay

Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.

Features & Benefits

Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Product Application Information

Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances

Note

Can be used as a replacement for earlier version of G2R-SN series, check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 41.7 (H) x 13 (W) x 29mm (D), 2 Poles - G2R-2 Series - G2R-2-SN 24DC(S)

For trouble-free industrial motor control, turn to this power relay from OMRON. It's a versatile operator that switches electrical loads in lighting, power or HVAC systems. The plug-in unit quickly snaps directly into a compatible socket (such as 264-7446), making it a cinch to mount or remove without using specialised tools. A mechanical indicator lets you know its switching state at a glance. Thanks to its transparent housing, there's no need to remove the relay's cover when carrying out a visual inspection. A handy nameplate means you can easily label it for speedy identification in a busy setup.

Features & Benefits

• Performs reliably at temperatures between -40°C and +70°C, so it's suitable for use in demanding environments
• Operating frequency of up to 18,000 mechanical operations per hour for use in demanding systems
• Light weight of 20g puts minimal strain on your equipment

Applications

• Wind turbines
• Security systems
• Industrial lighting
• Oil and gas industries

How long can I expect this power relay to last?

It has a mechanical durability of up to 20 million operations, so you can rest assured it's with you for the long haul.

Note

These items are designed for use in the medical profession particularly within Ultrasound and MRI.

Approvals

VDE; TUV; UL; CSA; SEMKO; IMQ

CSA LR31928

UL E41643

VDE 40015012

G2R Datasheet
